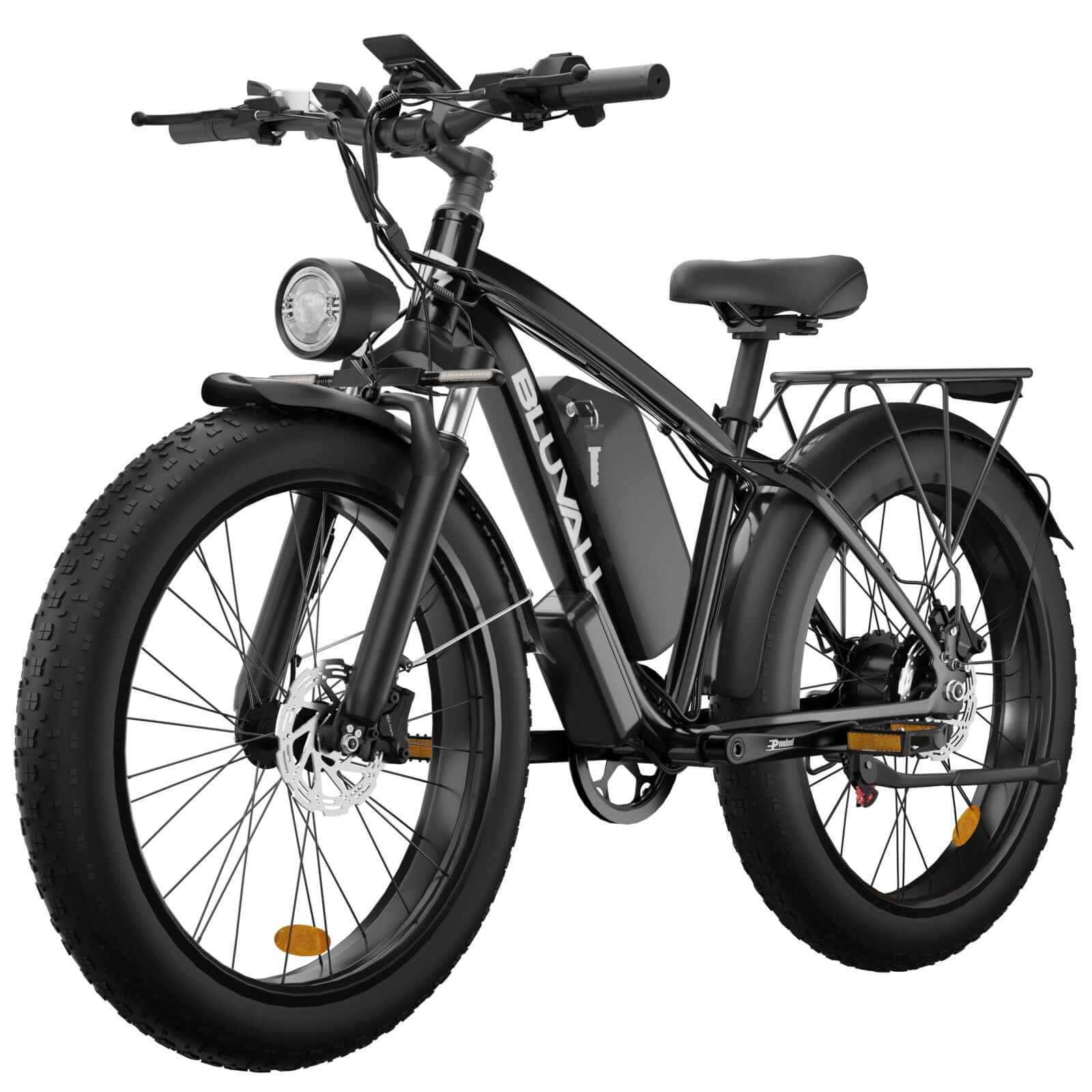

Home / Products / Bluvall B1 Electric Bike

Why B1 Ebike ?

The B1 1000W e-bike is the ideal entry-level choice for both commuting and adventure, achieving speeds of 31 MPH and a long range of 60 miles.

Top Speed

31MPH

Motor Power

1000W

Max Range

60 Miles

Payload Capacity

330 lbs

Fat Tire

26"x4" Fat Tire All Terrain

Dimension & Weight

B1 360 View

B1 1000W Key Features

Robust 1000W Motor

The Bluvall B1 boasts a robust 1000W high-speed brushless motor, 80NM Torque,propelling you to speeds of up to 31MPH, ideal for tackling tough terrains and steep inclines with ease.

48V16AH Battery

UL2849 Certified 48V 16Ah rechargeable Lithium-Ion battery.Enjoy an impressive riding range of 40-60 miles on a single charge. This removable battery design allows for convenient off-bike charging, enhancing security.

Aluminum Suspension Fork

Front suspension on this e-bikes absorbs shocks and vibrations, enhancing rider comfort and stability by smoothing out bumps and rough terrain.

Front & Rear Hydraulic Brakes

Benefiting from rear hydraulic brakes, this bike delivers precise stopping power tailored for optimal rear wheel control. Meanwhile, the front hydraulic brakes ensure superior braking force, essential for swift and efficient stops.

26"4" Fat Tire

Featuring 26'' * 4.0'' fat tires with rugged tread patterns, this bike offers exceptional grip, wear resistance, and anti-skid capabilities. Plus, multiple riding modes accommodate your individual preferences.

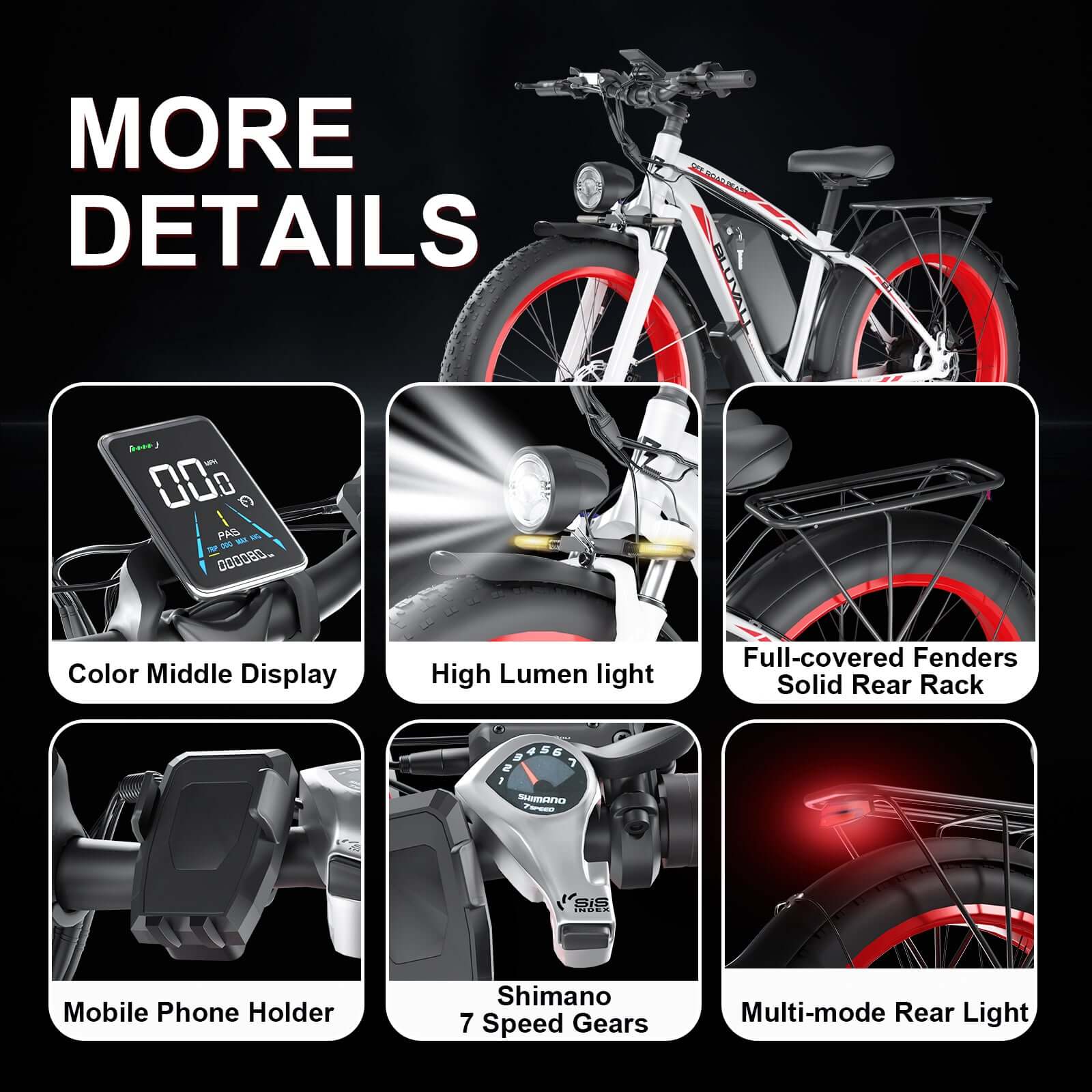

Other Details

Frame is crafted from durable high-ended aluminum 6061 alloys, ensuring longevity and robustness. The integrated intelligent LCD headlight display elevate the riding experience.

B1 Assembly Guide

B1 pro arrived 90% assembled ,the rest is easy with this video.

Specification

Weight & Size Plus

Weight

  • Net Weight:32kg (69lbs)  ( including battery)
  • Gross Weight:41.5kg (95.56lb)
  • Battery Weight:4kg (8.82lb)
  • Weight limit:150 kg (330 lb) Payload Capacity

Size

  • Product Size:1930x730x1110mm
  • Packing Size:1570x330x900mm
General Plus

General

  • Classes:Class 4(Ebikes can go above 28mph with pedal assistance)
  • Max Speed: 31MPH
  • Range:up to 60 Miles by Pedal assist,30+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
  • Pedal Assist:5 Levels

E-system

  • Battery:Removable Internal Lithium-ion Battery, 48V 16Ah, 720Wh
  • Charger:48V 3 Amp Charger, Approx. 6 Hour Charging, Aviation Connector. UL LISTED
  • Motor:Rear Geared Hub Motor, Rated 1000w,Max Torque 80NM
  • Controller: 48V 25A Peak
  • Display: Multifunctional LCD Smart Display
  • Pedal Assist: Cadence Sensor
  • Throttle: Twist Throttle
  • Front Light:48V 10W LED Light, 30 LUX
Component Plus

Drivetrain

  • Shifter:Shimano 7-Speed RevoShift
  • Rear Derailleur:Shimano ARDTY500D 7-Speed, Long Cage
  • Crank & Chainring: 52T, 170mm Alloy Crank
  • Freewheel:Shimano 14-28T, 7-Speed freewheel
  • Pedal: Alloy Platform Pedals
  • Chain:KMC 124 Link, 7-Speed

Components

  • Saddle: Comfortable Wide Saddle
  • Seatpost:Forged Alloy, Ø30.4*350mm
  • Seat Clamp:Ø35mm Quick Release
  • Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
  • Handlebar:Aluminum Ø31.8mm, Width 740mm
  • Headset:Sealed Bearing Headset
  • Grips:Nylon Lock-on, Ergonomic Comfort
  • Brake:Front & Rear Hydralic Disc Brakes, with160mm discs, with power-cut-off function
  • Brake rotor: 160mm, 1.9mm thick
  • Kickstand:Side Kickstand, Alloy, Rear Mount
  • Fenders:Plastic 26"x110mm
  • Rear Rack:Stainless Steel Rear Rack

Frameset

  • Frame: 6061 Aluminium, Removable Battery, Internal Routing
  • Fork:Hydraulic Suspension Fork with 60mm travel, with lockout

Wheels

  • Rim Material:Aluminum
  • Rim Size:26" 36H Front & Rear
  • Front Wheel Spokes:13G x 244/246mm, Black Stainless
  • Rear Wheel Spokes:12G x 217/219mm, Black Stainless
  • Tubes:Butyl Rubber, Schrader Valve
  • Hubs:Disc Nutted Front /Rear Axles
  • Tire: Fat Tires
  • Tire Size: 26" x 4.0"
Inside the Box Plus

Ebike x1

Battery x1

Charger x1

peddle x2

Tool Set x1

Manual X1

Bell & Phone Holder x1
