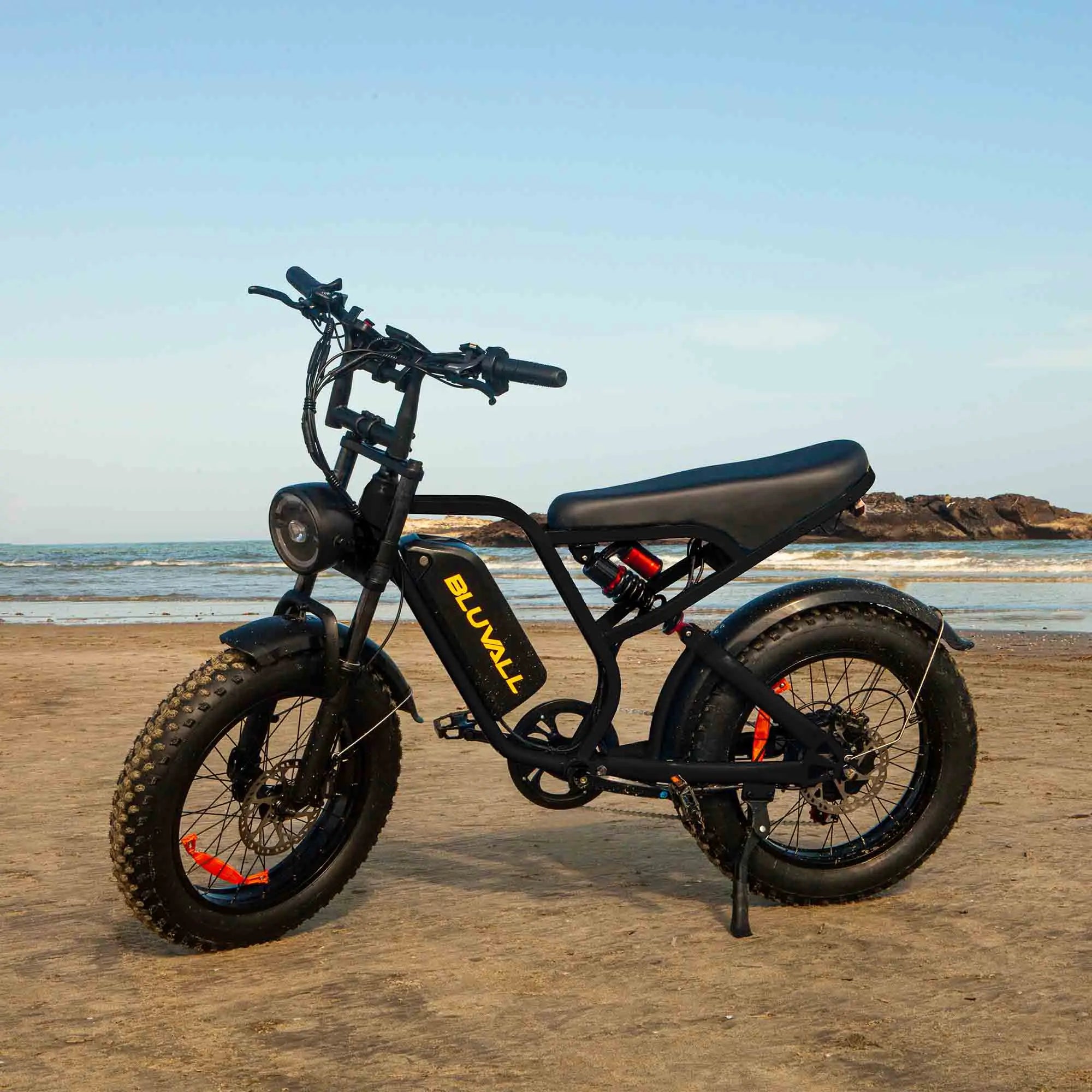

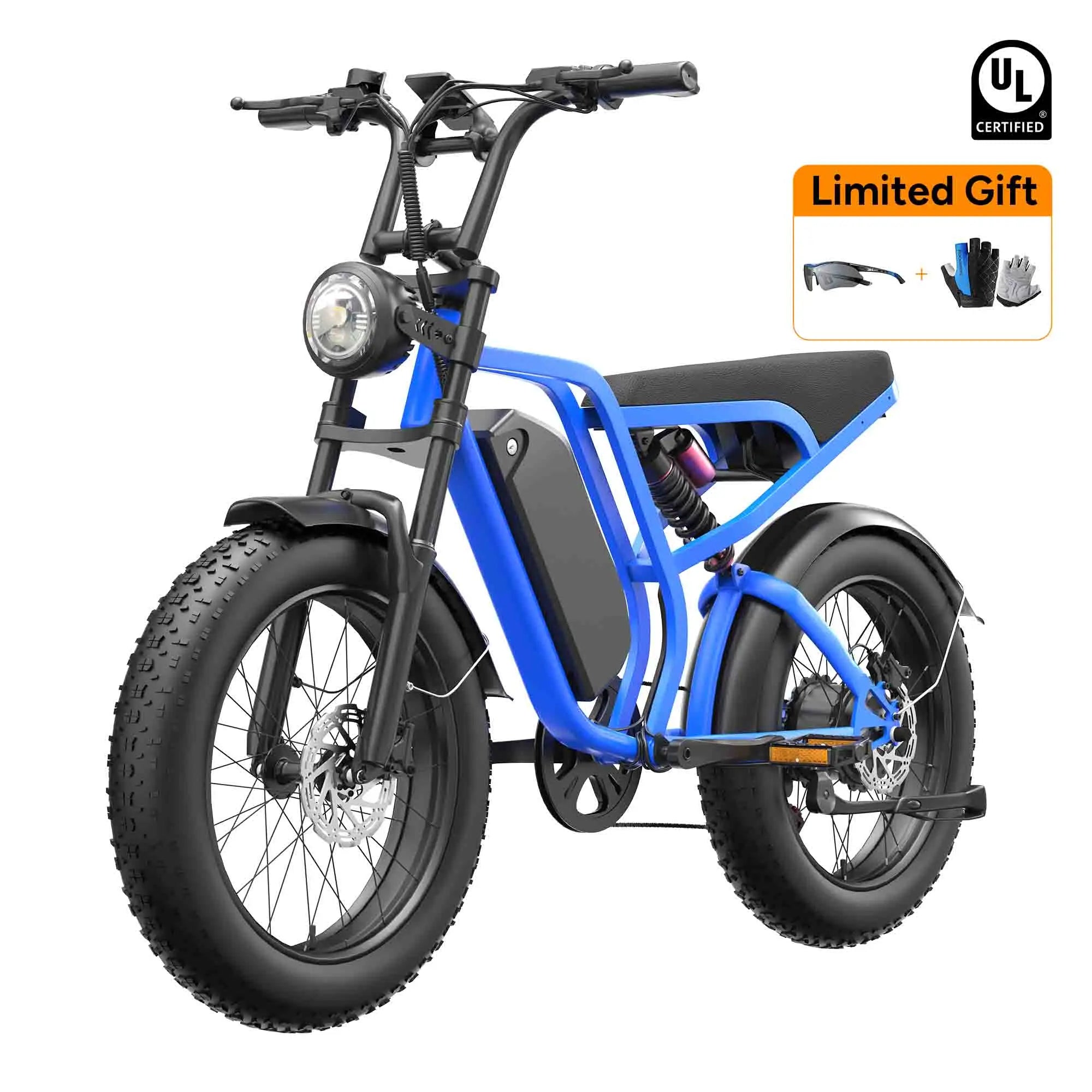

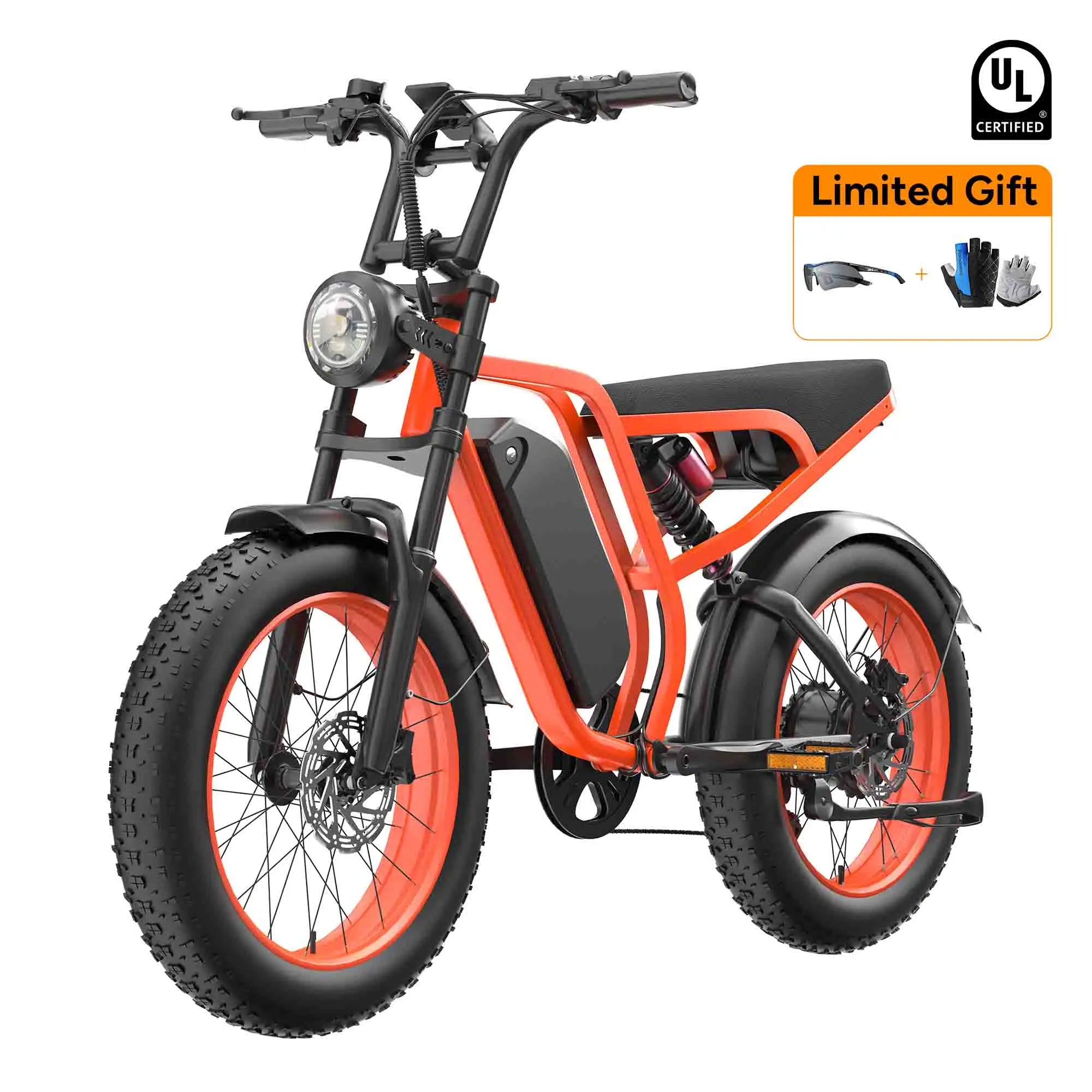

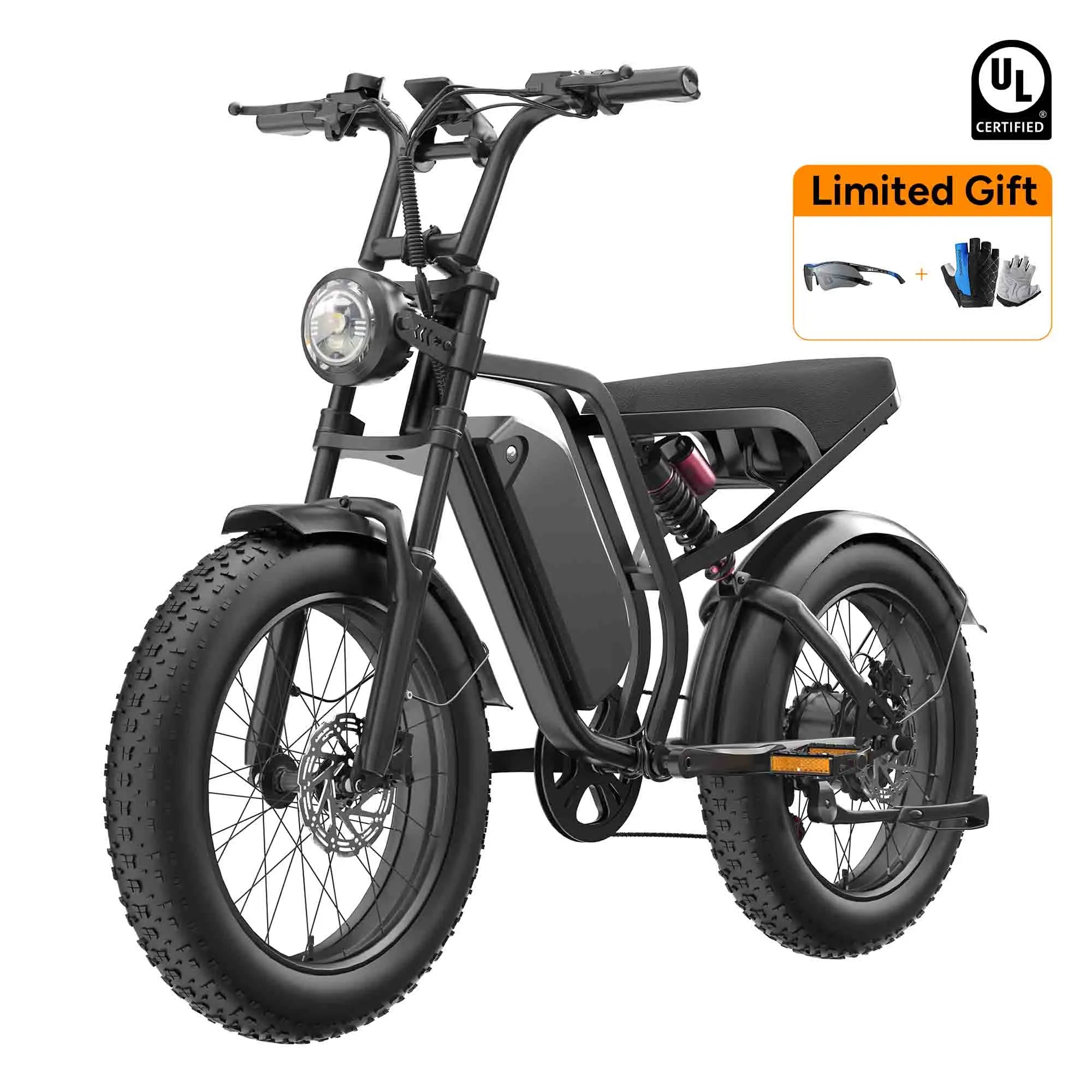

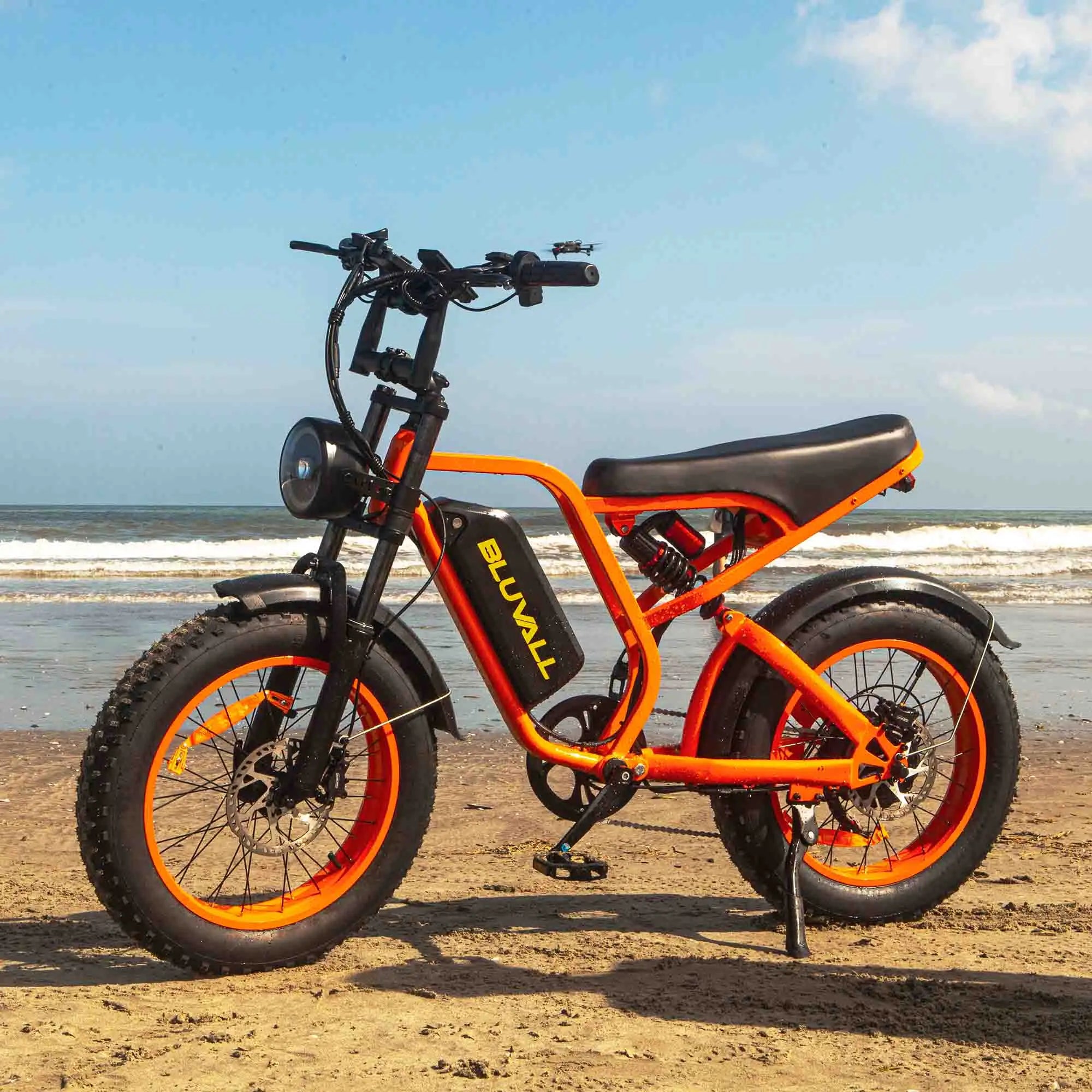

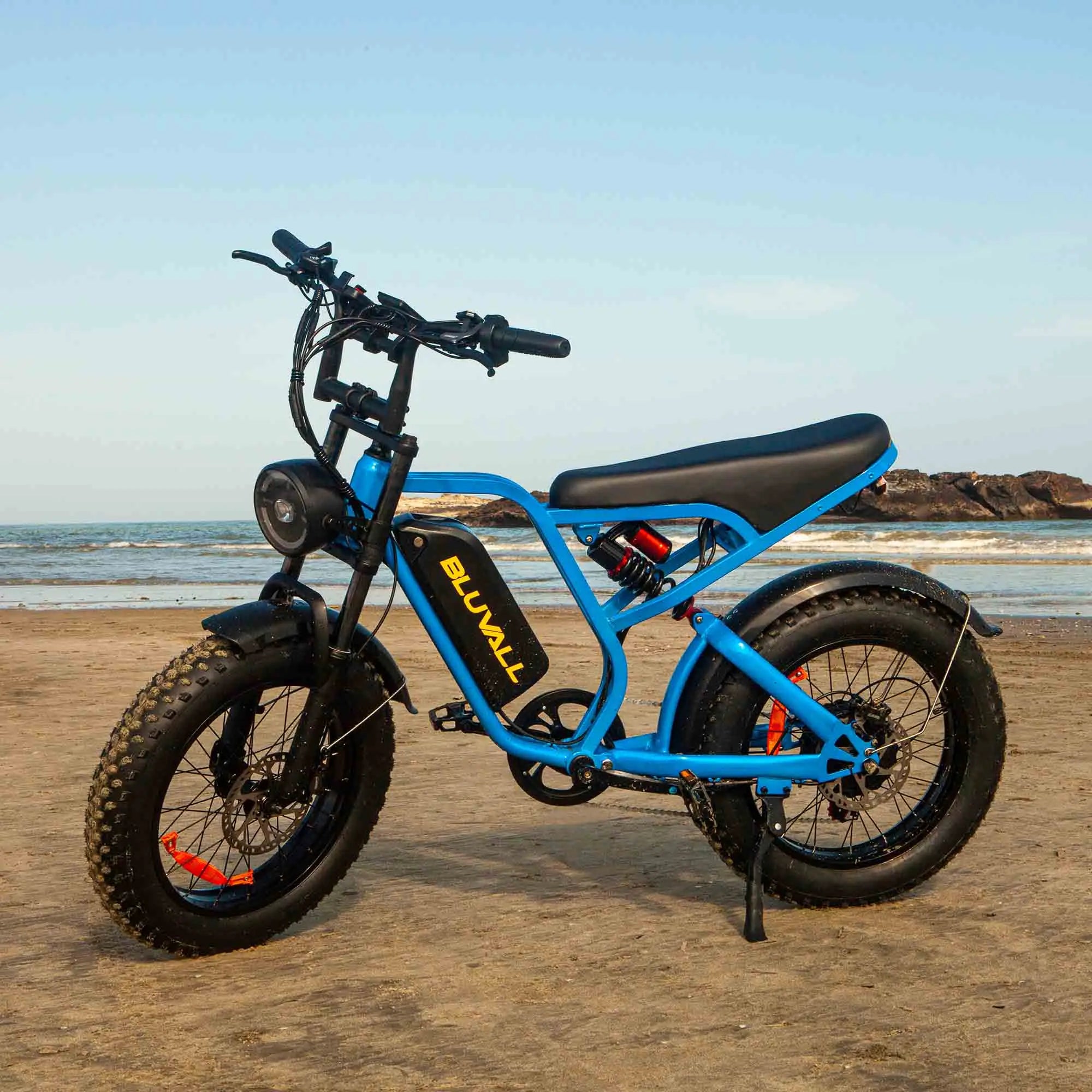

Home / Products / Bluvall SU8 Ebike

Why Su8 Ebike

The Su8 e-bike is designed for convenience in both commuting and adventure, featuring a speed of 31 MPH and a long range of 60 miles,Barely any maintanence.

Top Speed

31MPH

Motor Power

1500W

Max Range

60 Miles

Payload Capacity

330 lbs

Fat Tire

20"x4" Fat Tire All Terrain

Dimension & Weight

SU8 360 View

Bluvall SU8 Key Features

52V 1500W Motor

Equipped with a powerful 52v (48v)1500W motor and 85NM of torque, this e-bike achieves thrilling speeds of up to 31MPH(30MPH), effortlessly tackling steep hills and challenging terrain.

52V 20AH Battery

With the ease of simple recharging, the UL2849 Certified 52v(48V) 20Ah removable lithium battery offers an amazing riding range of up to 60 miles on a single charge.

Front & Rear Suspension

The electric bike has a hydraulic front fork and a rear shock (850LB) which helps you navigate a variety of terrain without being hurt or rolling over.

Hydraulic Brakes

Rear & Front hydraulic disc brakes provide exact braking force and are designed to maximize rear wheel control. Superior braking force is provided by front disc brakes, which is essential for rapid and efficient stopping.

All Terrain Fat Tire

The 20"x4" fat tires provide a safe and comfortable ride on various terrains, including rocky roads, uphill paths, snowy ground, and mud, as well as on pavement and city roads.

Other Details

The Shimano 7-speed shifter makes your pedaling easier and more efficient ,Super luminous headlight,LCD display,comfortabl seat make this bike more useful.

SU8 Assembly Guide

Bluvall SU8 arrived 90% assembled ,the rest is easy with this video.

Specification

Weight & Size Plus

Weight

  • Net Weight:36kg(79.4lb)
  • Gross Weight:45.6kg(100.5lb)
  • Battery Weight:4.2kg(9.3lb)
  • Weight limit:150kg(330lb) Payload Capacity

Size

  • Product Size:1720x1130x750mm
  • Packing Size:1450x320x800mm
General Plus

General

  • Classes:Class 4(Ebikes can go above 28mph with pedal assistance)
  • Max Speed: 31MPH
  • Range:up to 60 Miles by Pedal assist,40+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
  • Pedal Assist:5 Levels

E-system

  • Battery:Removable Internal Lithium-ion Battery, 52V 20Ah, 960Wh
  • Charger:52V 3 Amp Charger, Approx. 7 Hour Charging, Aviation Connector. UL LISTED
  • Motor:Rear Geared Hub Motor, Rated 52v 1500w(peak),Max Torque 85NM
  • Controller: 52V 28A Peak
  • Display: Multifunctional LCD Smart Display
  • Pedal Assist: Cadence Sensor
  • Throttle: Twist Throttle
  • Front Light:52V 10W LED Light, 30 LUX
Component Plus

Drivetrain

  • Shifter: Shimano, 7-Speed
  • Rear Derailleur: Shimano, Long Cage
  • Crank & Chainring:48T, 170mm Alloy Crank
  • Freewheel: 7-Speed

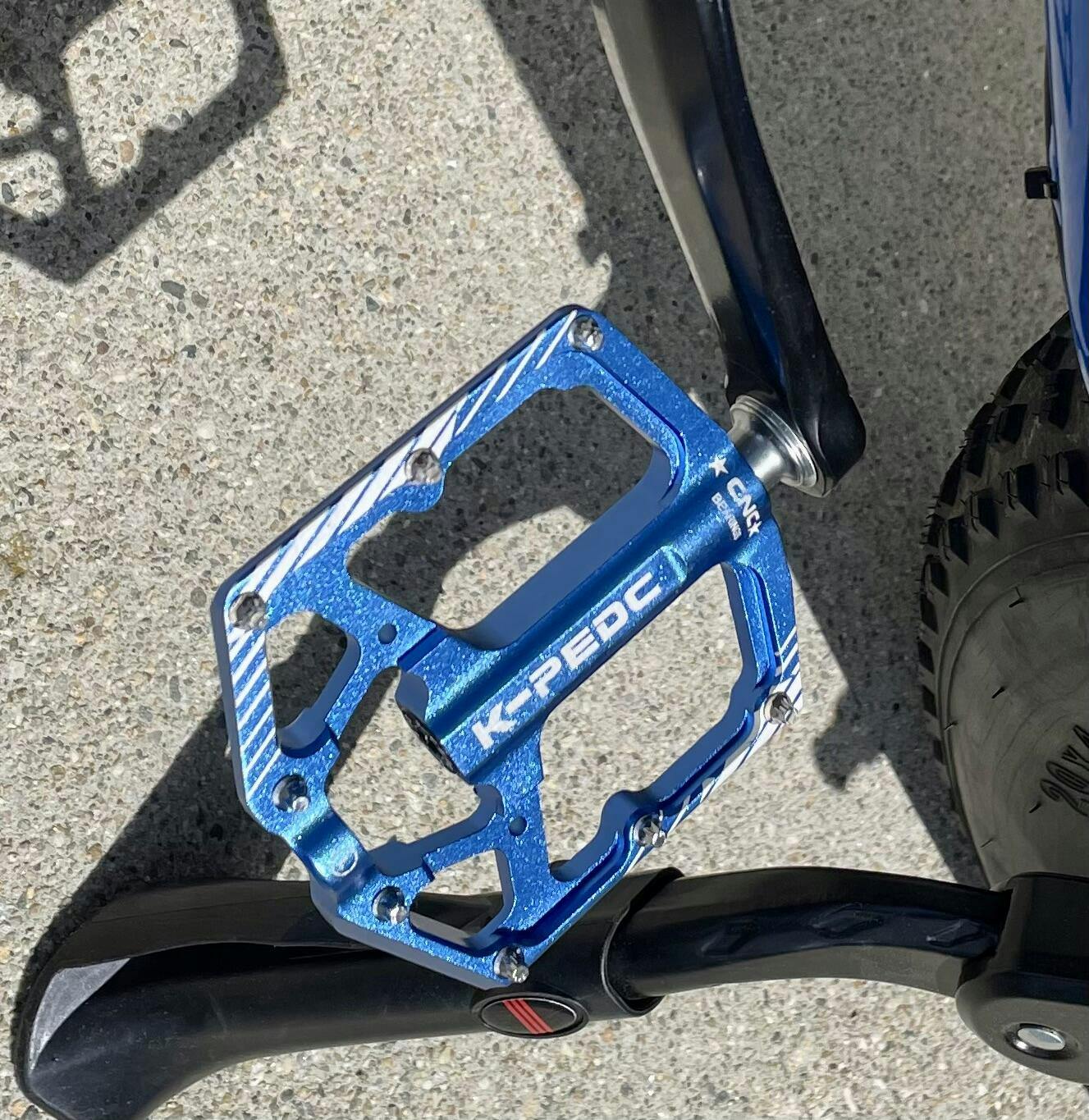

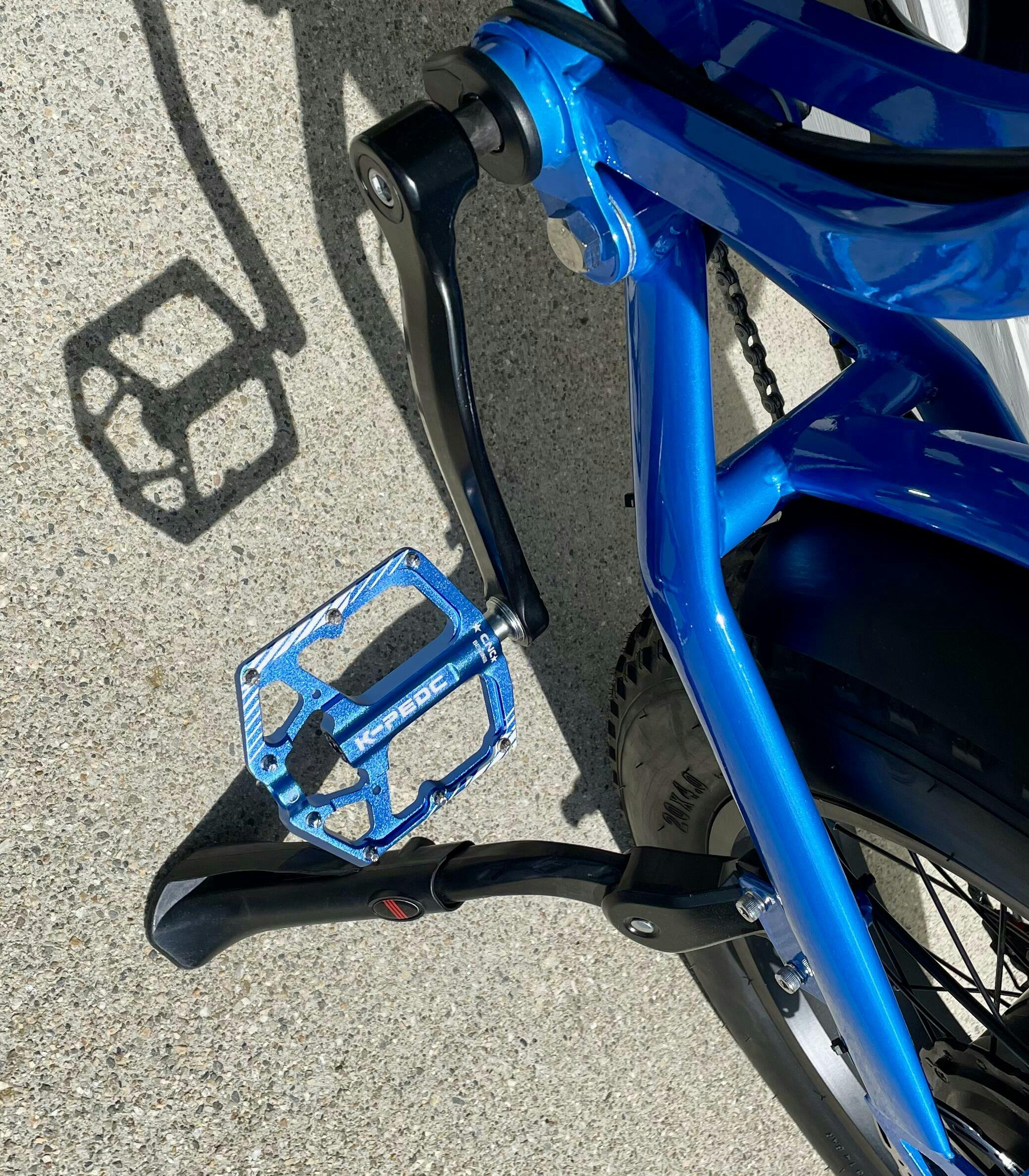

  • Pedal: Alloy Platform Pedals

Components

  • Saddle: Comfortable Wide Saddle
  • Handlebar:Alloy, 750mm width
  • Grips: Nylon Lock-on
  • Brake: Front & Rear Hydraulic Disc Brakes

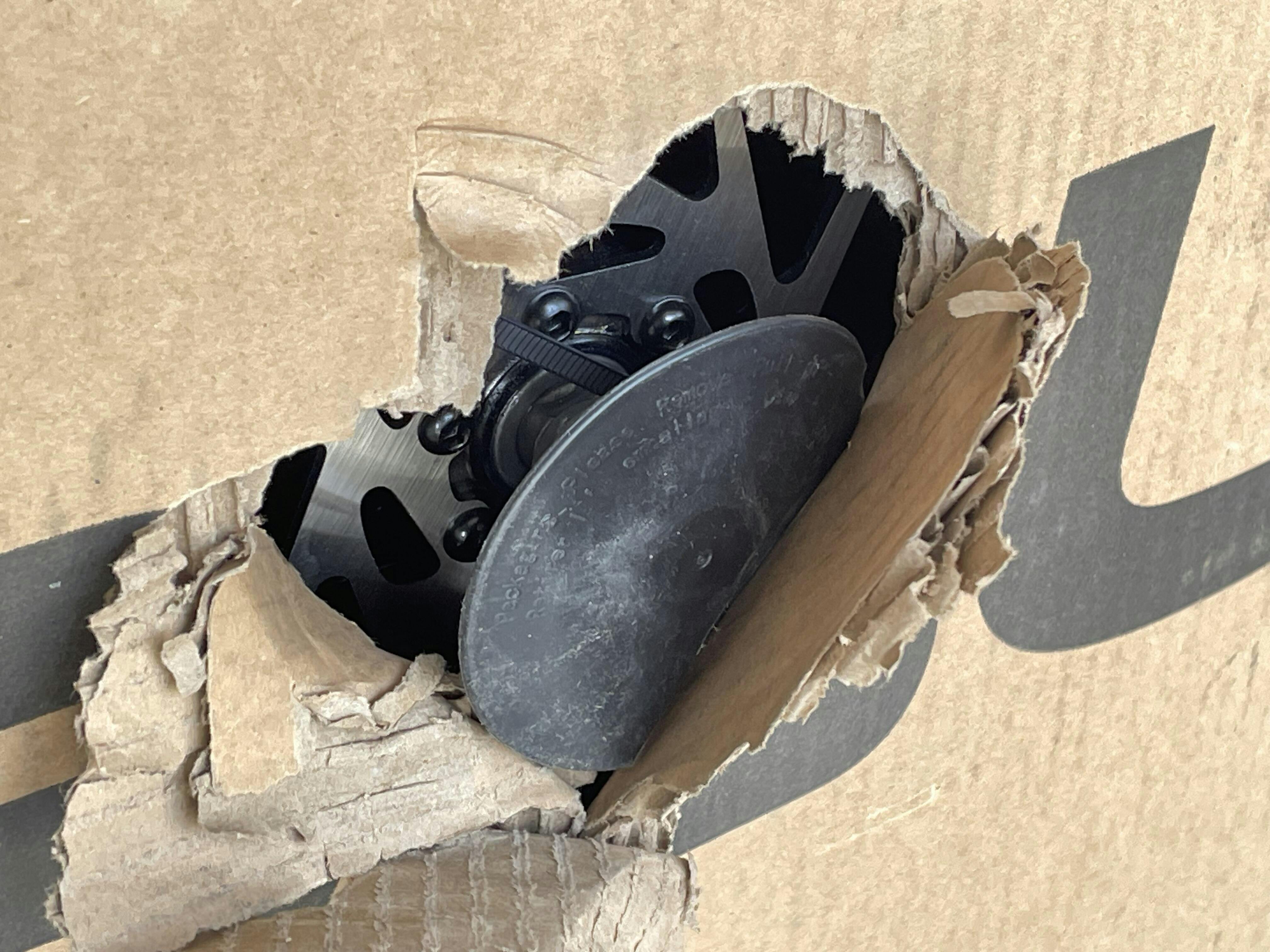

  • Brake rotor: 180mm, 1.9mm thick
  • Kickstand: Side Kickstand
  • Seatpost: Forged Alloy, Ø30.4*350mm
  • Stem:Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0°
  • Handlebar:Aluminum Ø31.8mm, Width 710mm

Frameset

  • Frame:Carbon Steel, Removable Battery, Internal Routing
  • Fork: Hydralic Suspension Fork
  • Fenders:Included

Wheels

  • Rim Material: Aluminum
  • Rim Size: 20 x 3.0
  • Rim Type: Wheel with Integral Hub
  • Tire:  Fat Tires
  • Tire Size: 20" x 4.0"
Inside the Box Plus

Ebike x1

Battery x1

Charger x1

peddle x2

Tool Set x1

Manual X1

Bell & x1
