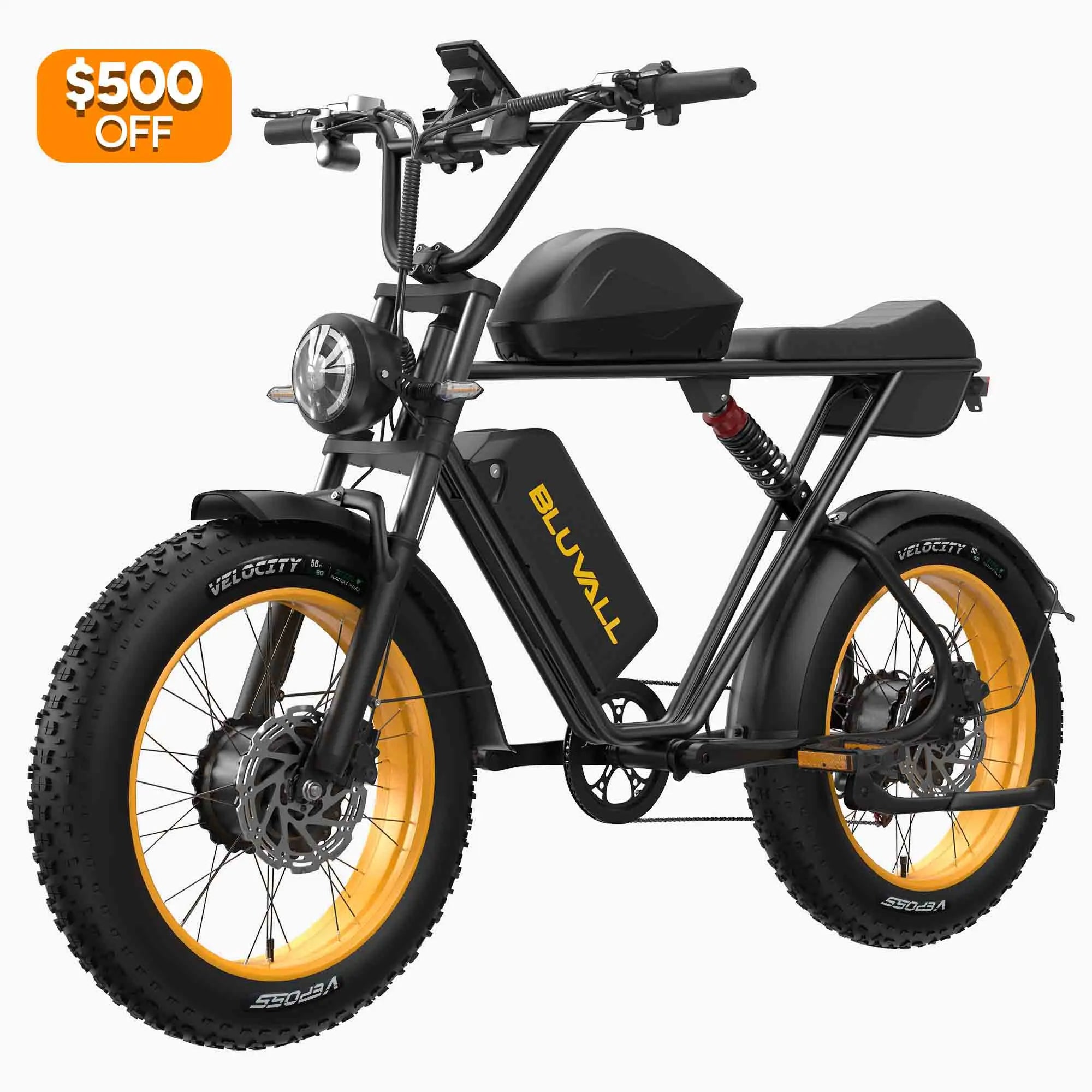

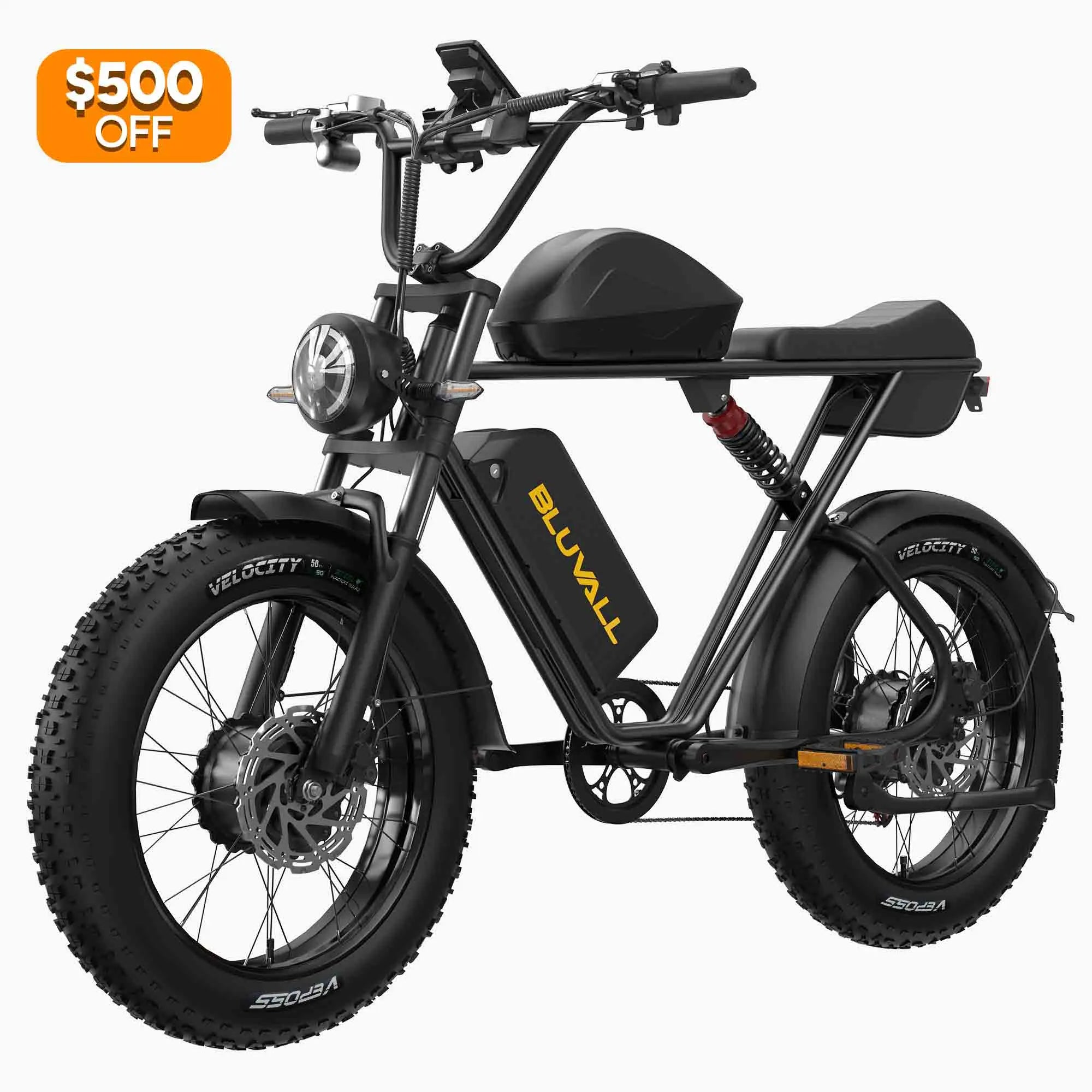

(Pre-sale)Bluvall K10 Ebike
Bluvall K10 eBike with 750W dual motors, top speed 28 mph, up to 160-mile range, dual battery 52V 20Ah + 52V 23Ah, weighs 79 lbs, 20"x4" fat tires.


















Why K10 Ebike
The K10 Dual Motor Ebike adapts to your needs and local regulations.
Flexible Motors:
Use one motor for efficiency or both for ultimate performance.
Impressive Range:
Pedal Assist: Up to 120 miles(single motor) or 70 miles (dual motors).
Throttle Mode: Up to 70 miles (single motor) or 40 miles (dual motors).
(Based on a 75kg rider. Range may vary with conditions.)

28MPH

750W

120 Miles

330 lbs

20"x4" Fat Tire All Terrain
Dimension & Weight
Bluvall K10 Ebike fits for body height 5'5"-6'7‘’(168cm-204cm),Max payload 330LB (150KG)


Bluvall K10 Key Features

Equipped with dual 52V 750Wmotors and 160Nm of torque, this e-bike delivers thrilling speeds of up to 28 MPH, effortlessly conquering steep hills and challenging terrain.

The UL2849 Certified dual 52V 20Ah + 52V 23Ah removable lithium battery offers an impressive range of up to 120 miles on a single charge, with the convenience of easy recharging.

The electric bike has a hydraulic front fork and a rear shock (850LB) which helps you navigate a variety of terrain without being hurt or rolling over.

The front and rear hydraulic disc brakes (180mm) deliver precise braking power, designed to maximize control over the rear wheel. The superior braking force from the front disc brakes ensures rapid and efficient stopping, essential for safety and performance.

Ultra-bright headlights and rear lights, combined with dual blinkers, enhance safety during night rides and in foggy or rainy conditions.

The Shimano 7-speed shifter makes your pedaling easier and more efficient by allowing you to seamlessly adjust gears to match varying terrains and riding conditions.
K10 360 View

K10 Assembly Guide
Bluvall K10 arrived 90% assembled ,the rest is easy with this video.


Handle Bar & Manual
Download Manual
Handle Bar & Manual
Download ManualWeight
- Net Weight:42kg(92.6lb)
- Gross Weight:52kg(114.6lb)
- Battery Weight:5.1kgx2(11.5x2lb)
- Weight limit:150kg(330lb) Payload Capacity
Size
- Product Size:1720x1150x760mm
- Packing Size:1500x340x800mm
General
- Classes:Class 3
- Max Speed: 28MPH
- Range:up to 120 Miles by Pedal assist,70+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
- Pedal Assist:5 Levels
E-system
- Battery:Dual Removable Internal Lithium-ion Battery, 52V 20Ah + 52V 23Ah, 1196Wh
- Charger:48V 3 Amp Charger, Approx. 7 Hour Charging, Aviation Connector. UL LISTED
- Motor:Dual Geared Hub Motor, Rated 750w(peak),Max Torque 160NM
- Controller: (52V 20Ah + 52V 23Ah Peak)*2,The total peak power is 2600w
- Display: Multifunctional LCD Smart Display
- Pedal Assist: Cadence Sensor
- Throttle: Twist Throttle
- Front Light:52V 10W LED Light, 30 LUX
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring:52T, 170mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar:Alloy, 750mm width
- Grips: Nylon Lock-on
- Brake: Front & Rear Hydraulic Disc Brakes
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost: Forged Alloy, Ø30.4*350mm
- Stem:Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0°
- Handlebar:Aluminum Ø31.8mm, Width 710mm
Frameset
- Frame:Carbon Steel, Removable Battery, Internal Routing
- Fork: Hydralic Suspension front Fork,spring rear shock
- Fenders:Included
Wheels
- Rim Material: Aluminum
- Rim Size: 20 x 3.0
- Rim Type: Wheel with Integral Hub
- Tire: Fat Tires
- Tire Size: 20" x 4.0"
Ebike x1
Battery x2
Charger x2
peddle x2
Tool Set x1
Manual X1
Bell & x1
