Bluvall SU8 Ebike
Bluvall SU8 eBike with 750W motor, top speed 28 mph, up to 60-mile range, 52V 20Ah battery, 20"x4" fat tires, weighs 79 lbs.


















Why Su8 Ebike
The Su8 e-bike is designed for convenience in both commuting and adventure, featuring a speed of 28 MPH and a long range of 60 miles,Barely any maintanence.

28MPH

750W

60 Miles

330 lbs

20"x4" Fat Tire All Terrain
Dimension & Weight


SU8 360 View

Bluvall SU8 Key Features

Equipped with a powerful 52v (48v)750W motor and 85NM of torque, this e-bike achieves thrilling speeds of up to 28MPH, effortlessly tackling steep hills and challenging terrain.

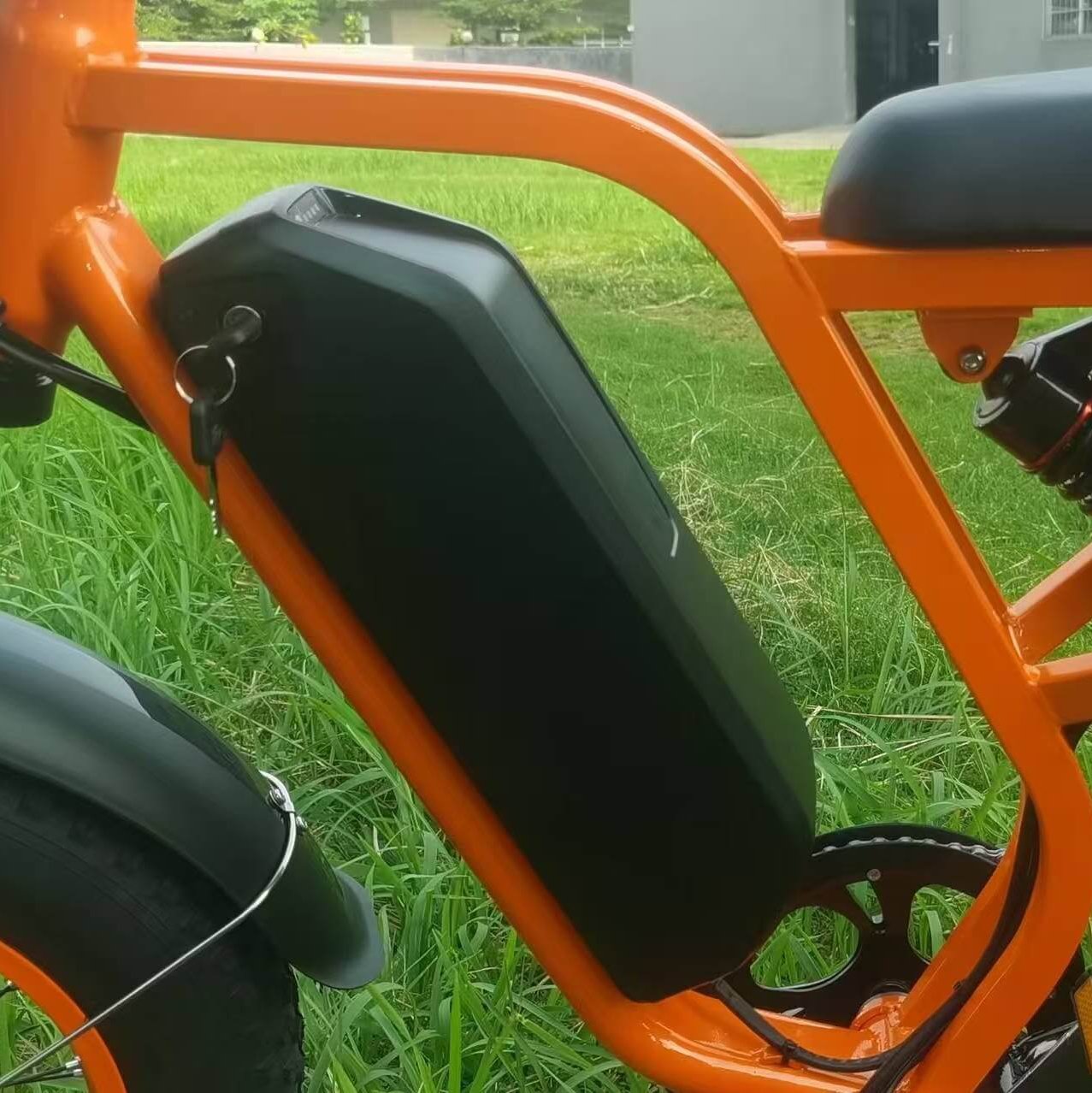

With the ease of simple recharging, the UL2849 Certified 52v(48V) 20Ah removable lithium battery offers an amazing riding range of up to 60 miles on a single charge.

The electric bike has a hydraulic front fork and a rear shock (850LB) which helps you navigate a variety of terrain without being hurt or rolling over.

Rear & Front hydraulic disc brakes provide exact braking force and are designed to maximize rear wheel control. Superior braking force is provided by front disc brakes, which is essential for rapid and efficient stopping.

The 20"x4" fat tires provide a safe and comfortable ride on various terrains, including rocky roads, uphill paths, snowy ground, and mud, as well as on pavement and city roads.

The Shimano 7-speed shifter makes your pedaling easier and more efficient ,Super luminous headlight,LCD display,comfortabl seat make this bike more useful.
SU8 Assembly Guide
Bluvall SU8 arrived 90% assembled ,the rest is easy with this video.


Handle Bar & Manual
Download Manual
Handle Bar & Manual
Download ManualWeight
- Net Weight:36kg(79.4lb)
- Gross Weight:45.6kg(100.5lb)
- Battery Weight:4.2kg(9.3lb)
- Weight limit:150kg(330lb) Payload Capacity
Size
- Product Size:1720x1130x750mm
- Packing Size:1450x320x800mm
General
- Classes:Class 4(Ebikes can go above 28mph with pedal assistance)
- Max Speed: 28MPH
- Range:up to 60 Miles by Pedal assist,40+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
- Pedal Assist:5 Levels
E-system
- Battery:Removable Internal Lithium-ion Battery, 52V 20Ah, 960Wh
- Charger:52V 3 Amp Charger, Approx. 7 Hour Charging, Aviation Connector. UL LISTED

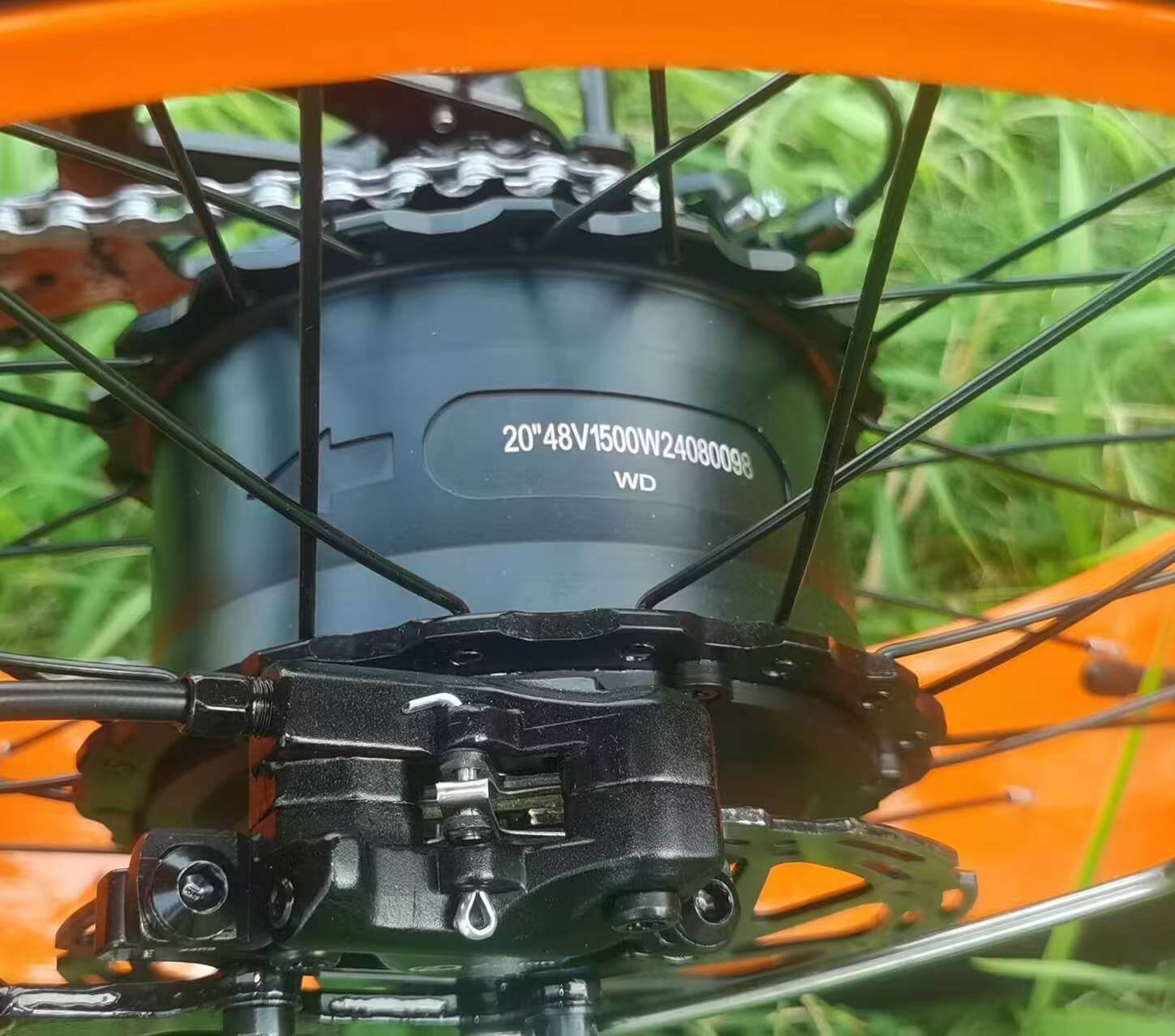

- Motor:Rear Geared Hub Motor, Rated 52v 1500w(peak),Max Torque 85NM
- Controller: 52V 28A Peak
- Display: Multifunctional LCD Smart Display
- Pedal Assist: Cadence Sensor
- Throttle: Twist Throttle
- Front Light:52V 10W LED Light, 30 LUX
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring:48T, 170mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar:Alloy, 750mm width
- Grips: Nylon Lock-on
- Brake: Front & Rear Hydraulic Disc Brakes
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost: Forged Alloy, Ø30.4*350mm
- Stem:Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0°
- Handlebar:Aluminum Ø31.8mm, Width 710mm
Frameset
- Frame:Carbon Steel, Removable Battery, Internal Routing
- Fork: Hydralic Suspension Fork
- Fenders:Included
Wheels
- Rim Material: Aluminum
- Rim Size: 20 x 3.0
- Rim Type: Wheel with Integral Hub
- Tire: Fat Tires
- Tire Size: 20" x 4.0"
Ebike x1
Battery x1
Charger x1
peddle x2
Tool Set x1
Manual X1
Bell & x1
