Home / Products / Bluvall V1 Dual Motor Ebike

Why V1 Dual Motor Ebike

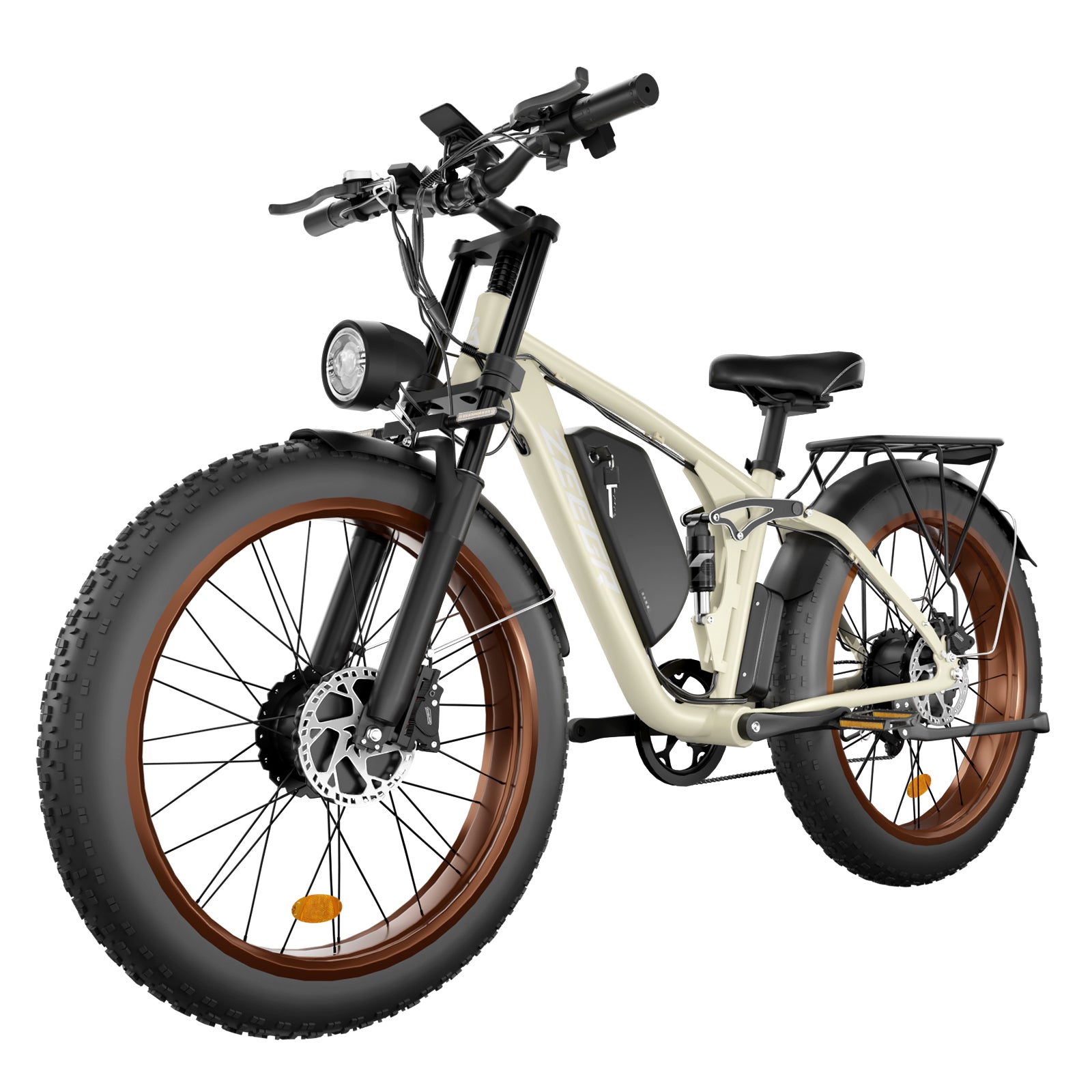

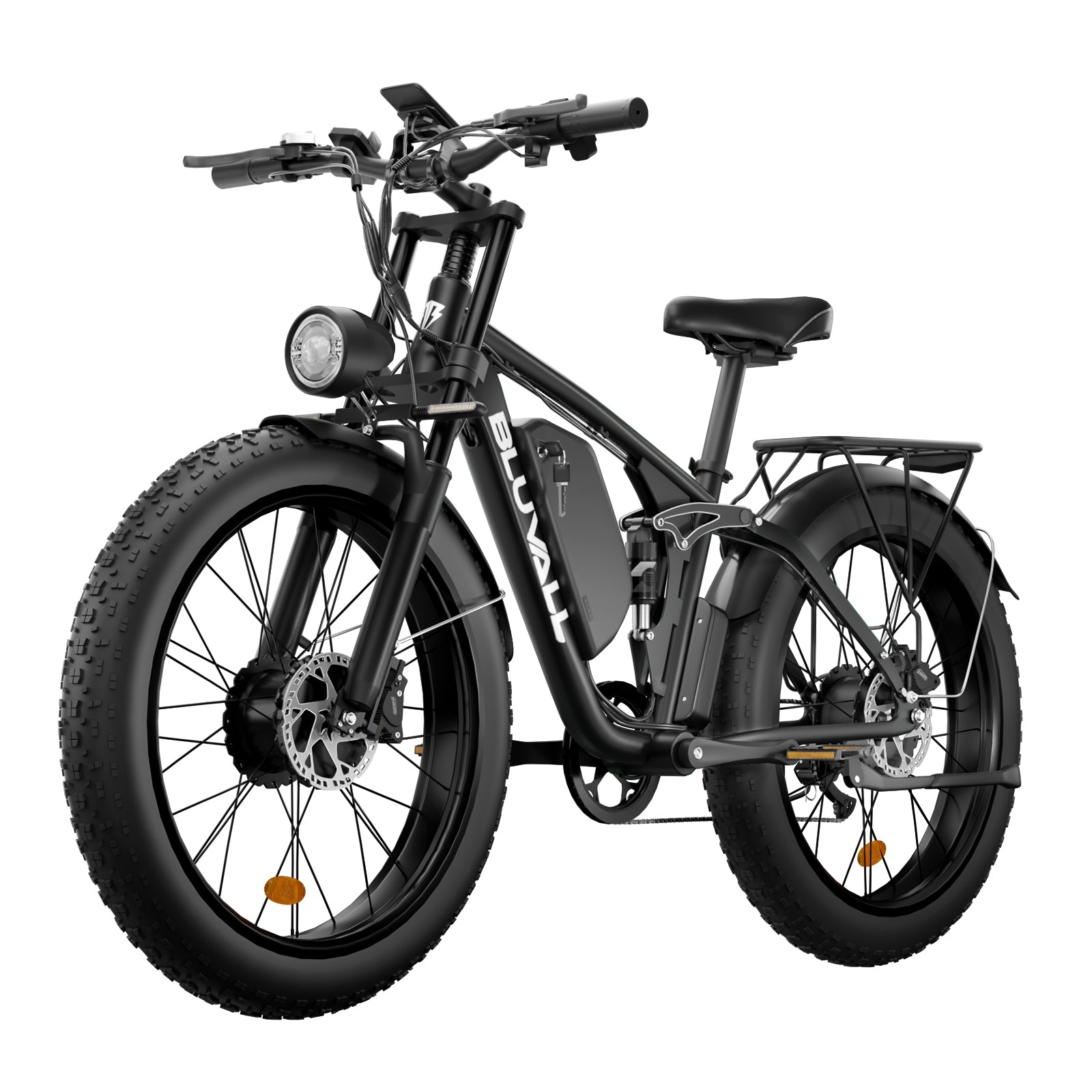

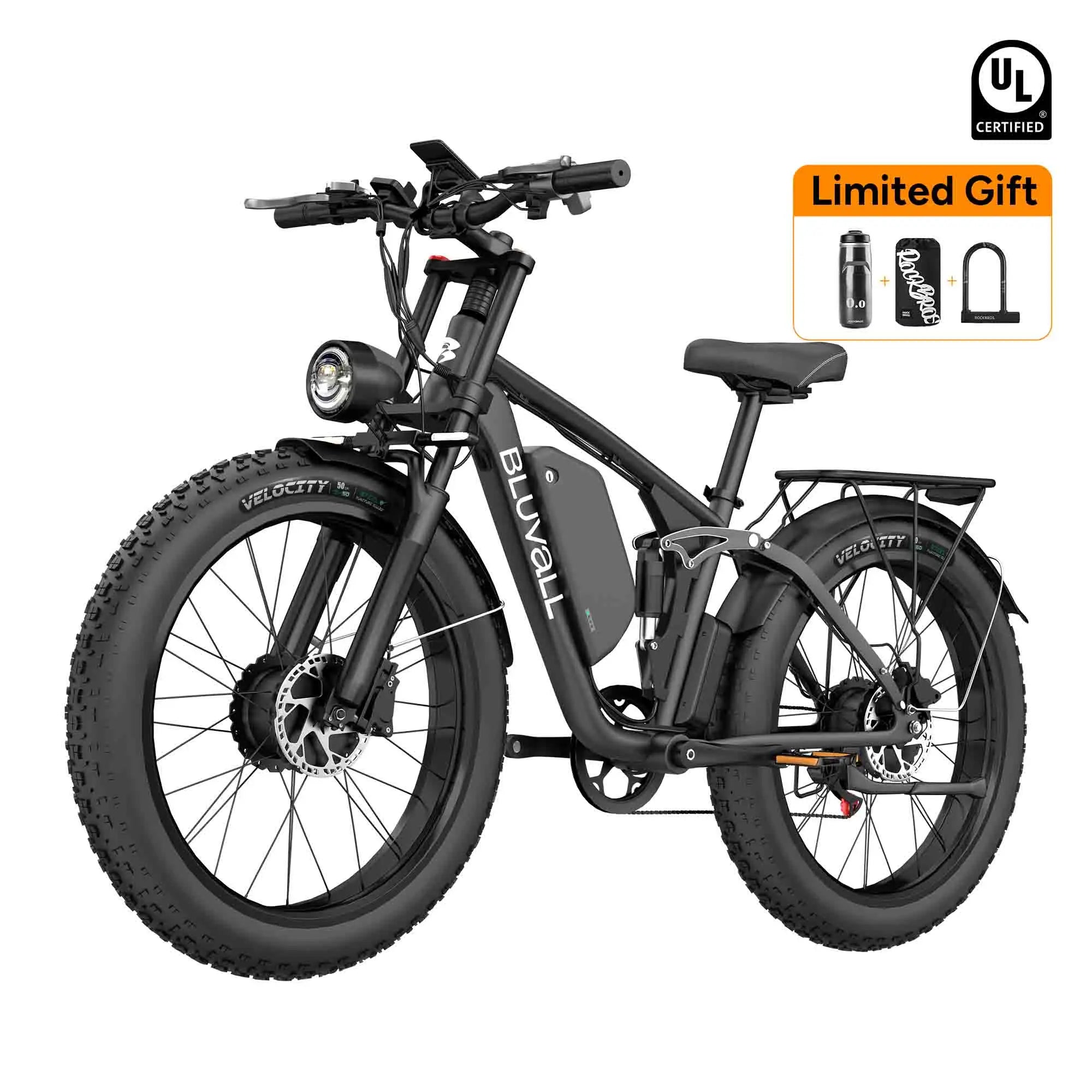

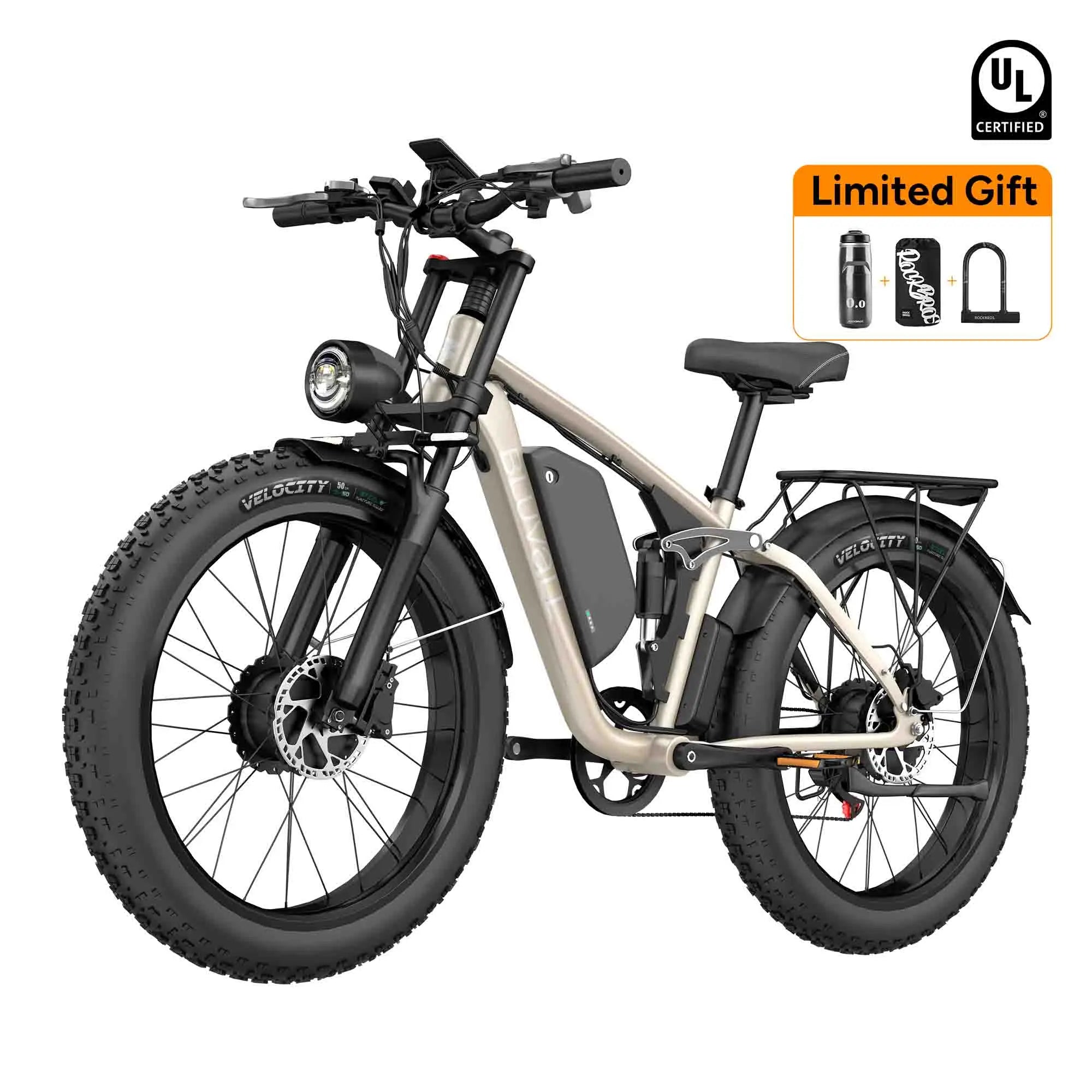

The BLuvall V1 is the most cost-effective luxury dual motor e-bike, featuring full suspension, reaching speeds of 35 MPH, and offering an impressive 80 miles of range.

Top Speed

35MPH

Motor Power

2000W

Max Range

80 Miles

Payload Capacity

330 lbs

Fat Tire

26"x4" Fat Tire All Terrain

Dimension & Weight

Dual Motor V1

Bluvall V1 Key Features

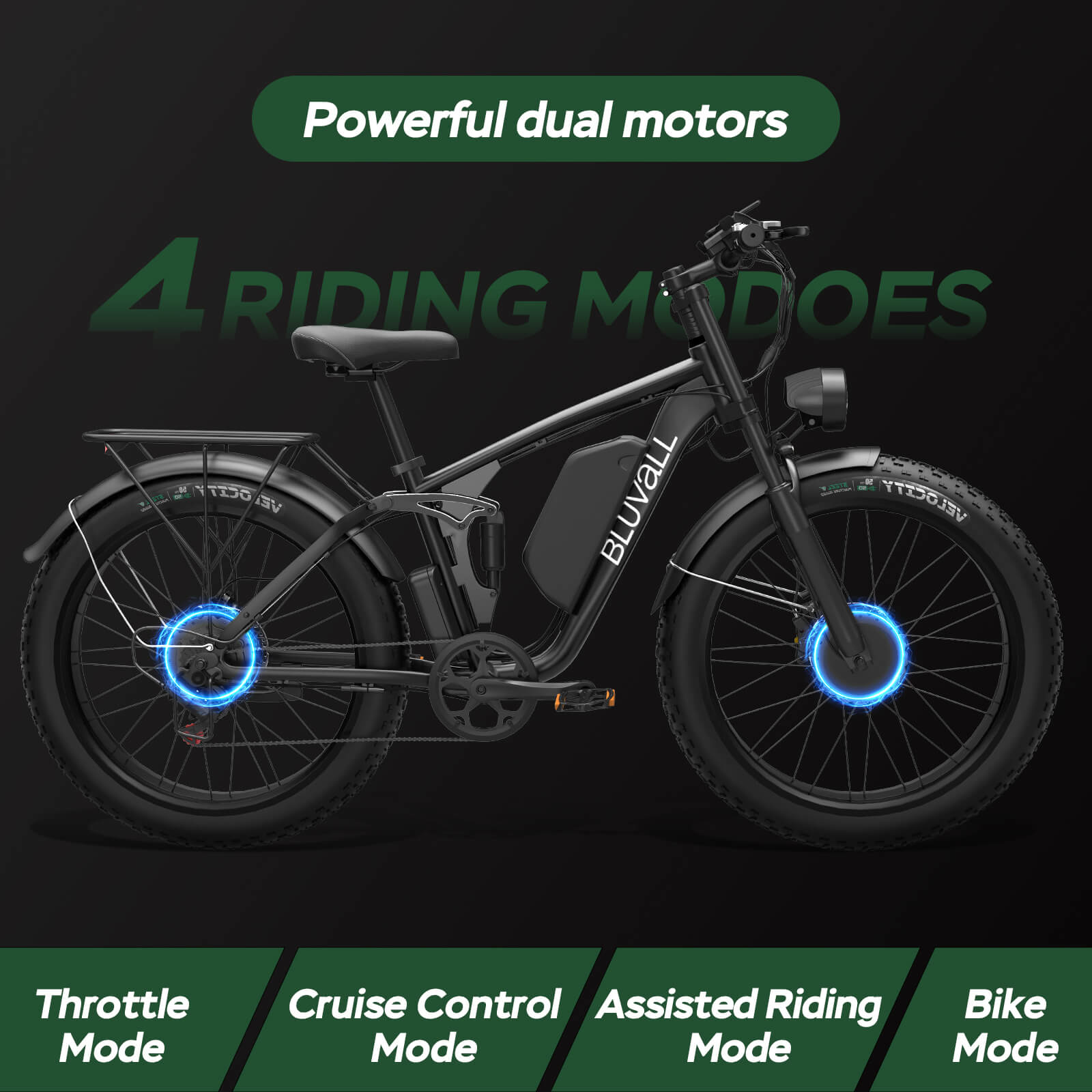

Dual Motor 2000W

With a powerful 2000W dual-motor AWD system, 165NM torque ,this e-bike provides exhilarating speeds of up to 35MPH, effortlessly conquering steep hills and challenging terrain.

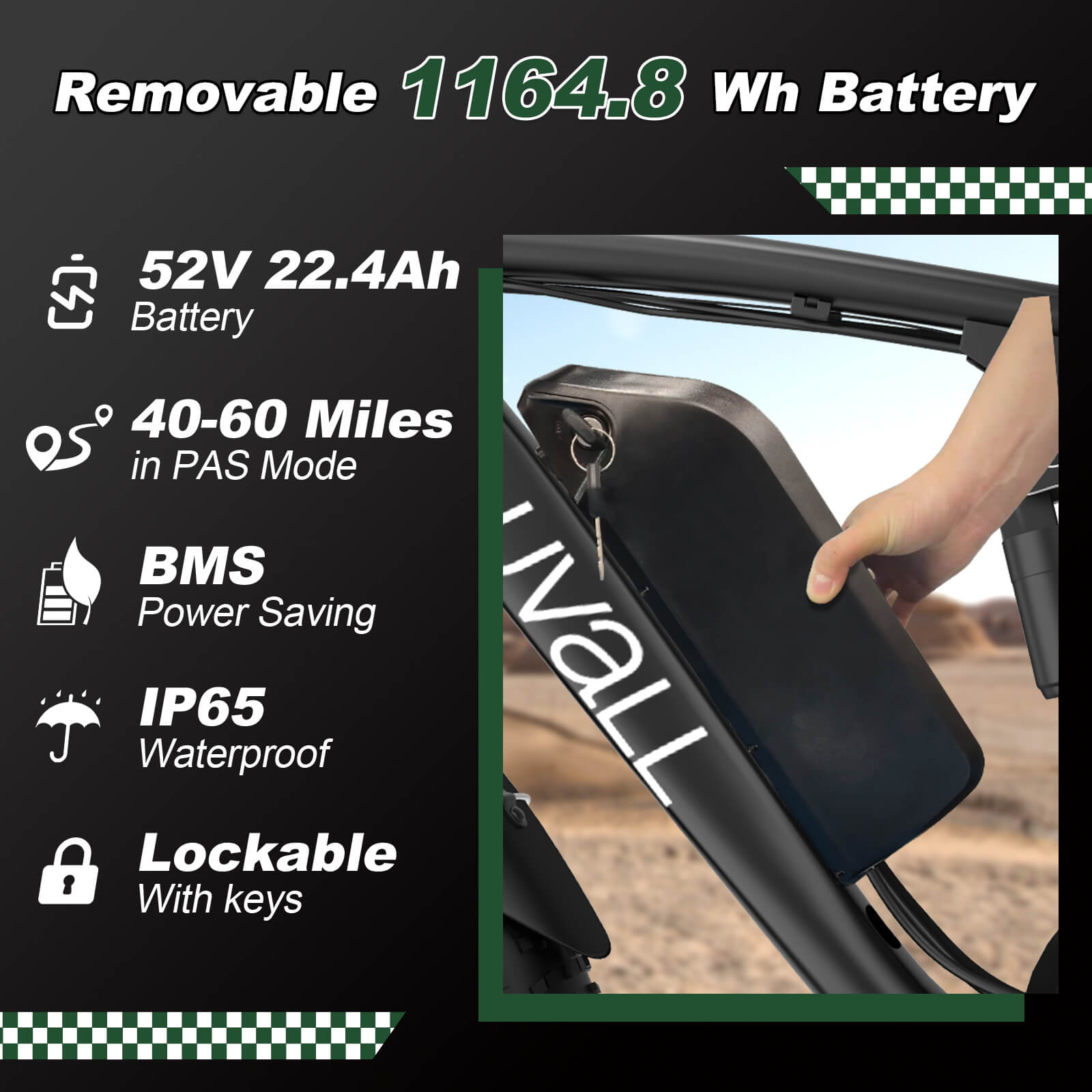

52V 22.4AH Battery

The UL2849 Certified 52V 22.4Ah(upgraded) removable lithium battery offers an impressive riding range up to 60-80 miles on a single charge, with the convenience of charging .

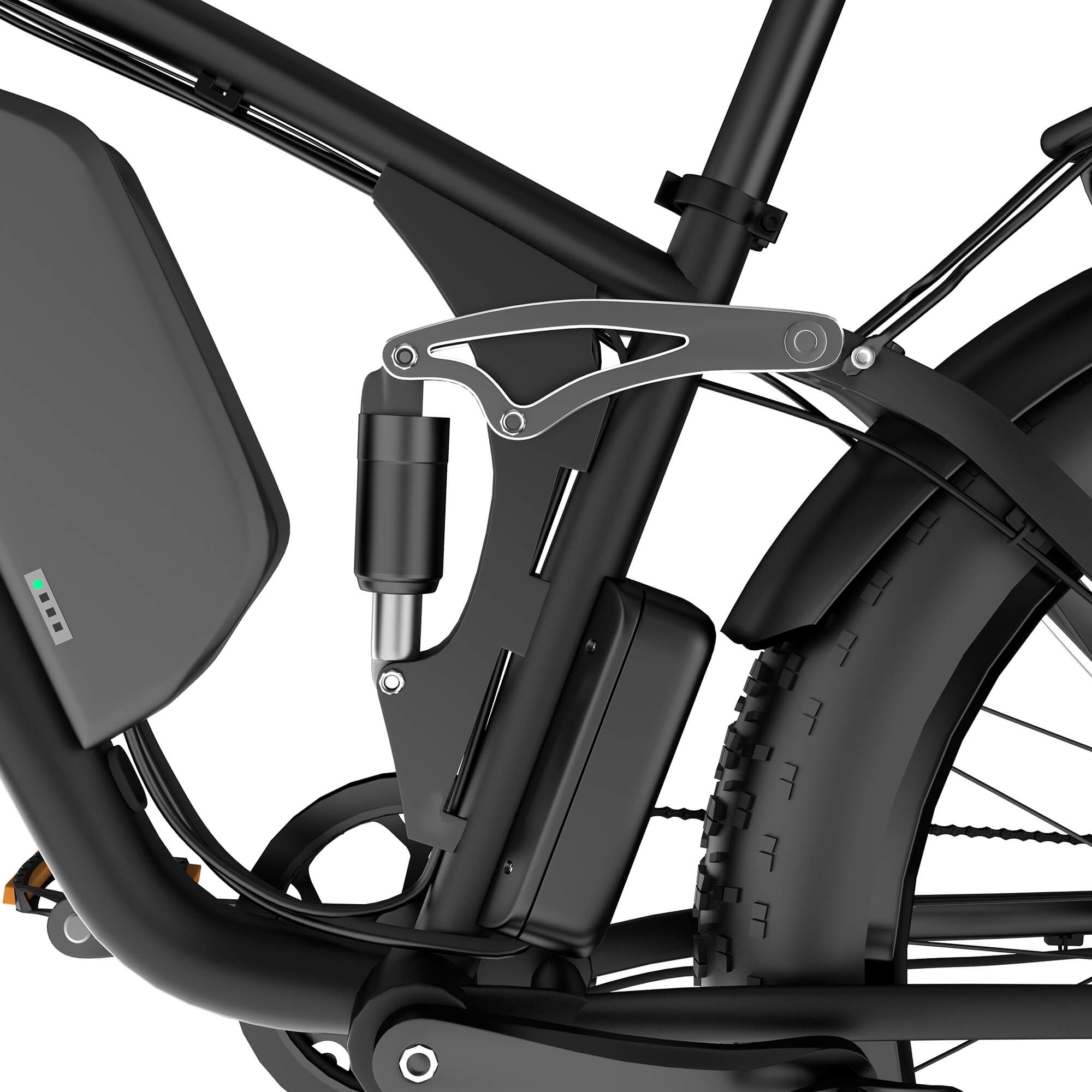

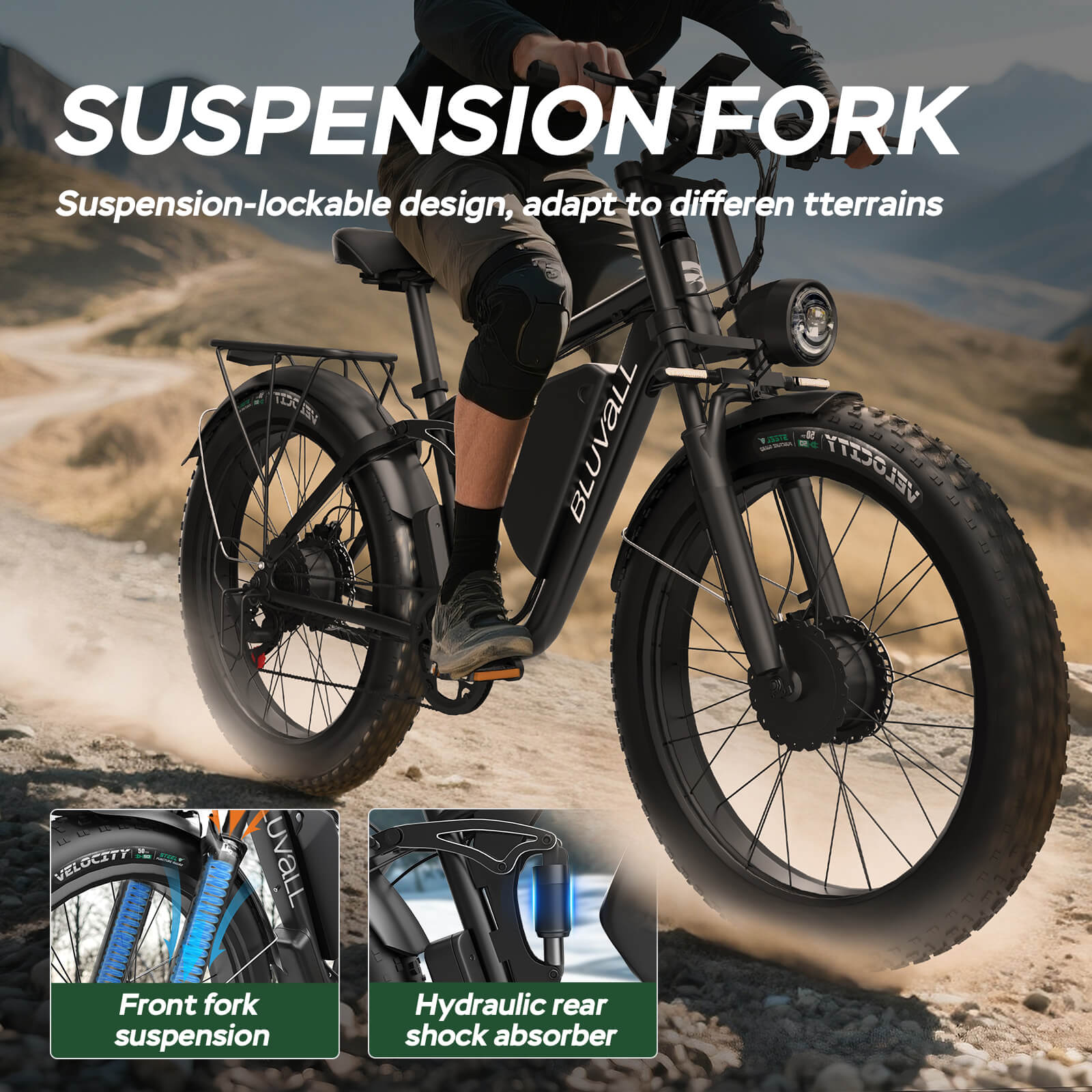

Full Suspension Dual Crown

The lockable dual-crown fork ensures fatigue-free rides on any terrain. Front and rear hydraulic disc brakes provide reliable stopping power, even in adverse conditions.

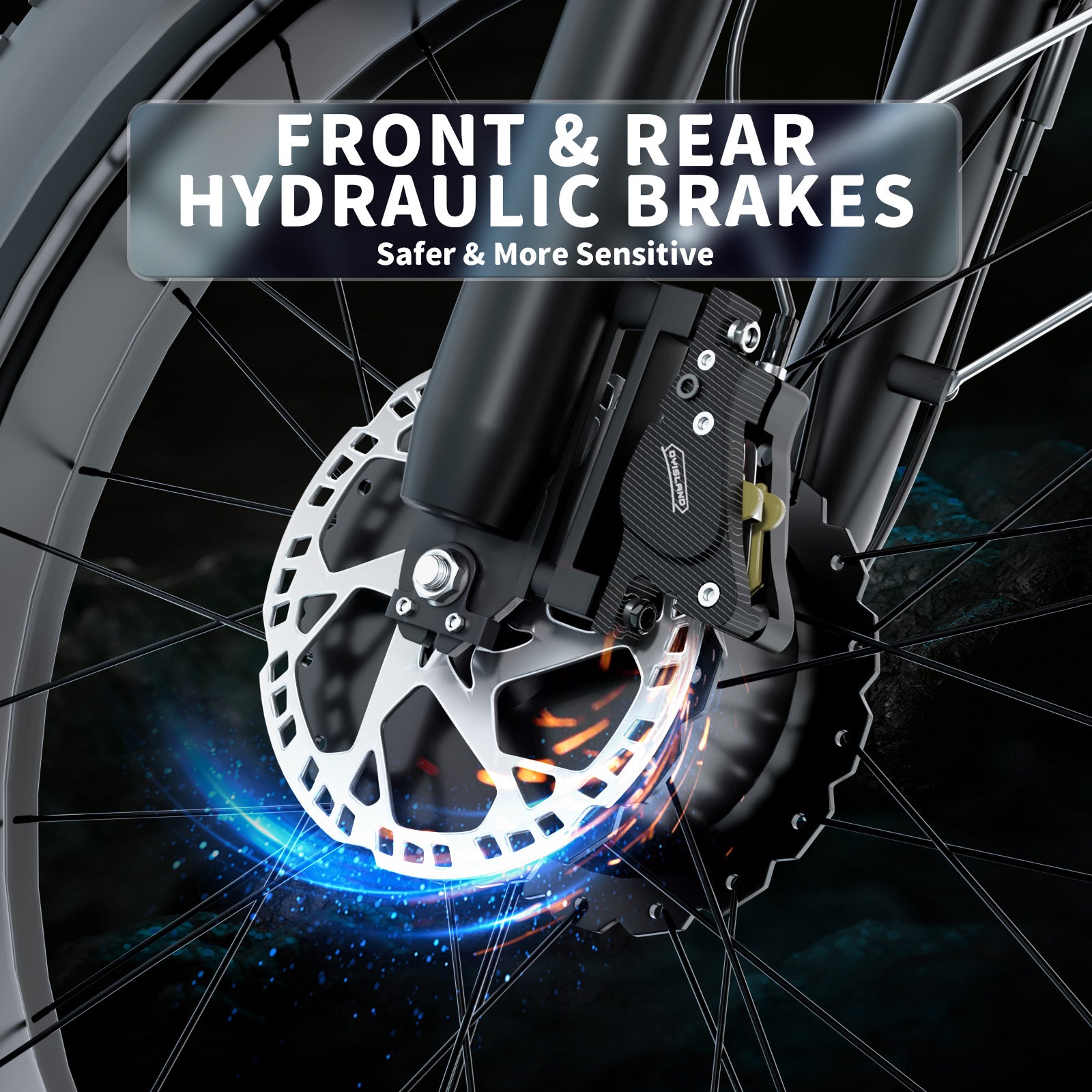

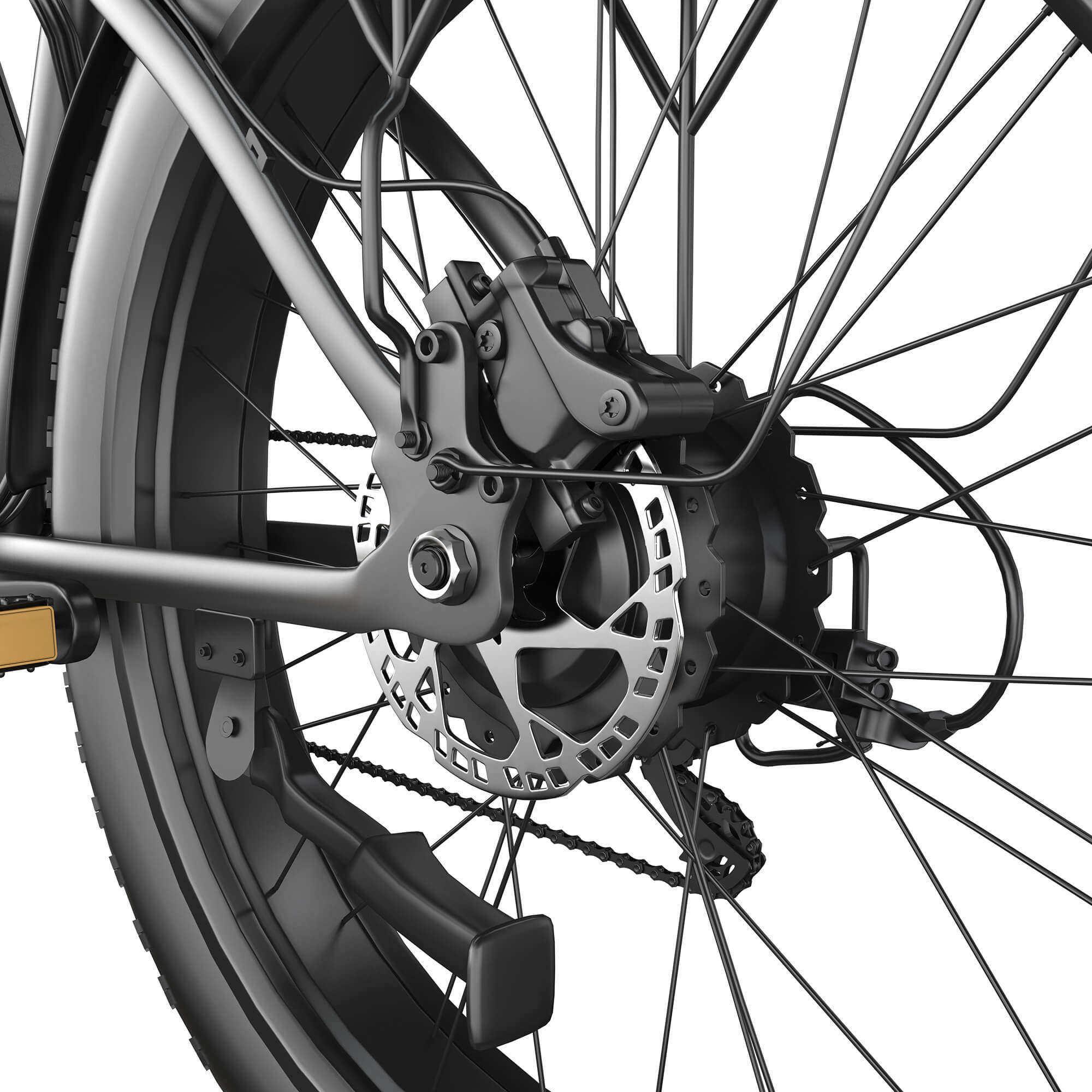

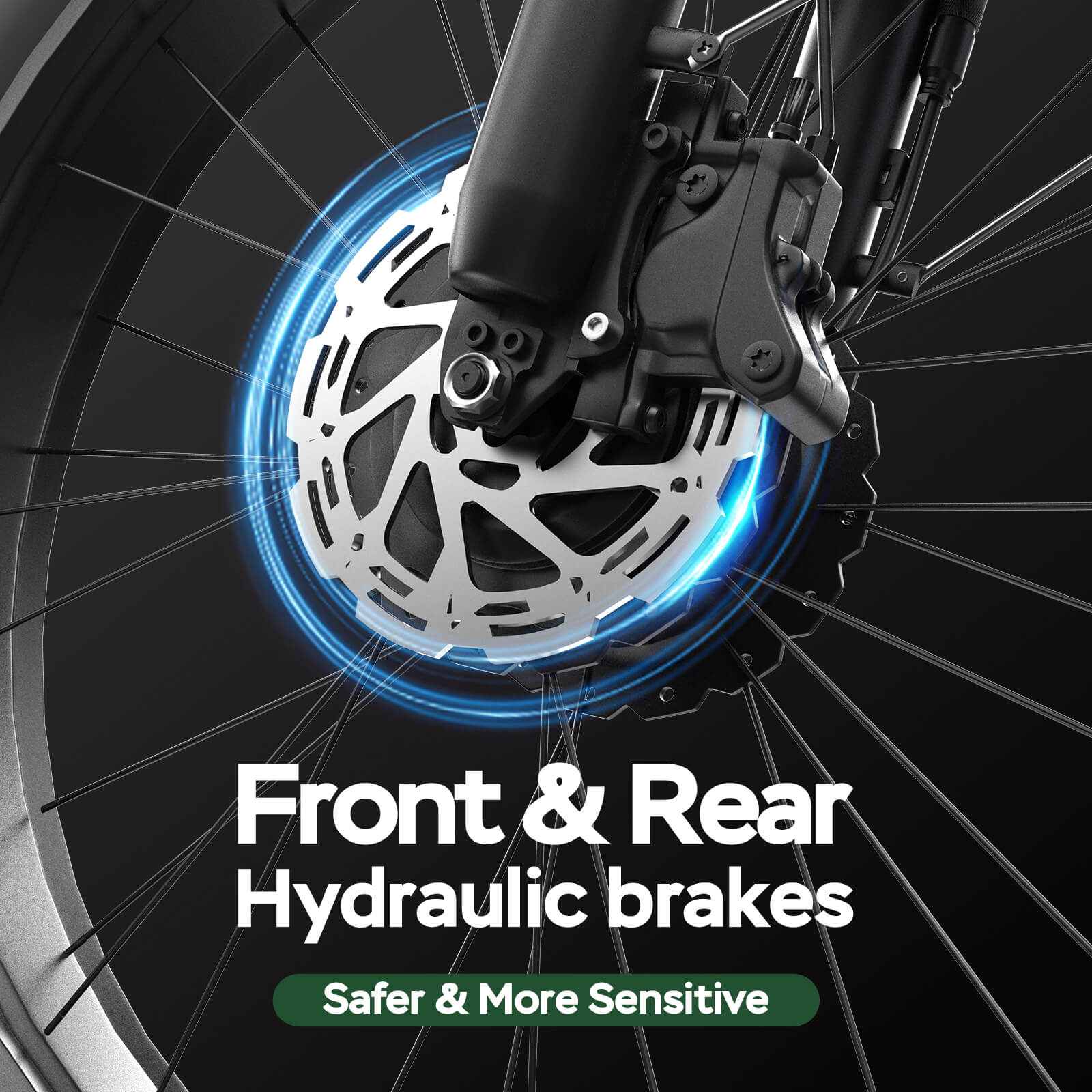

Front & Rear Hydraulic Brakes

Rear hydraulic brakes offer precise stopping power, optimized for rear wheel control. Front hydraulic brakes provide superior braking force, crucial for quick and effective stopping.

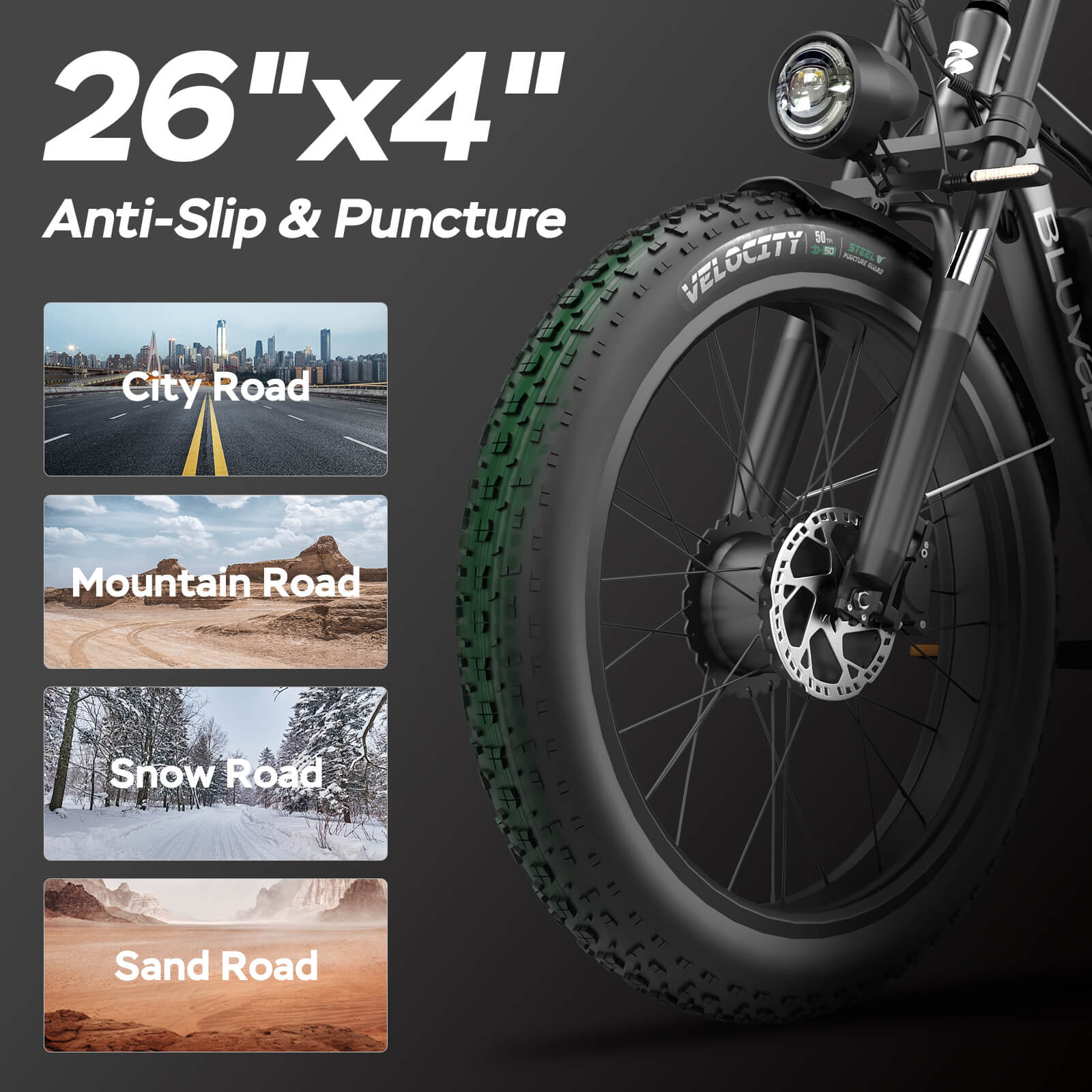

26"4" Fat Tire

26'' *4.0'' fat tires with robust tread patterns offer superior grip, wear resistance, and anti-skid capabilities. Multiple riding modes cater to your preferences.

Other Details

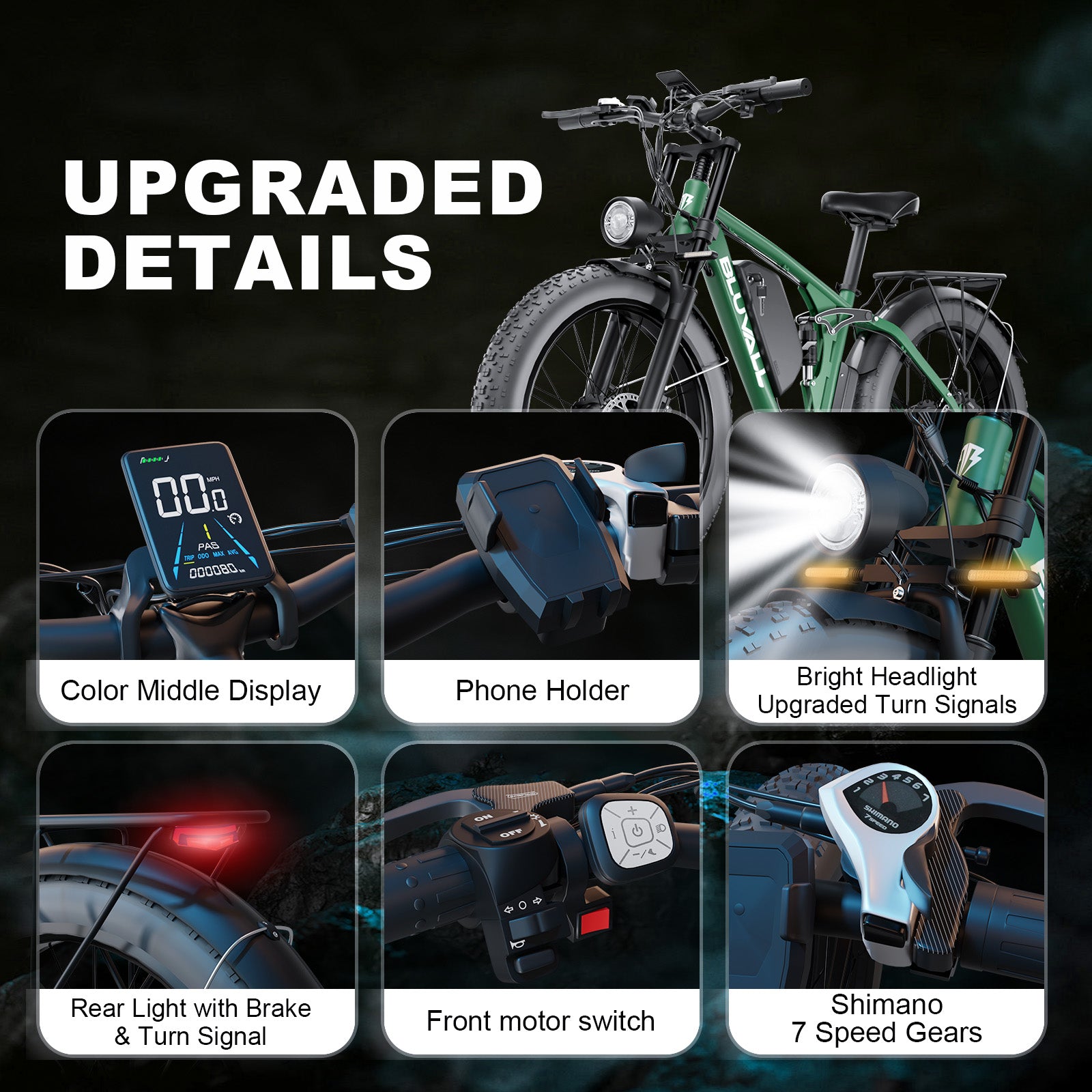

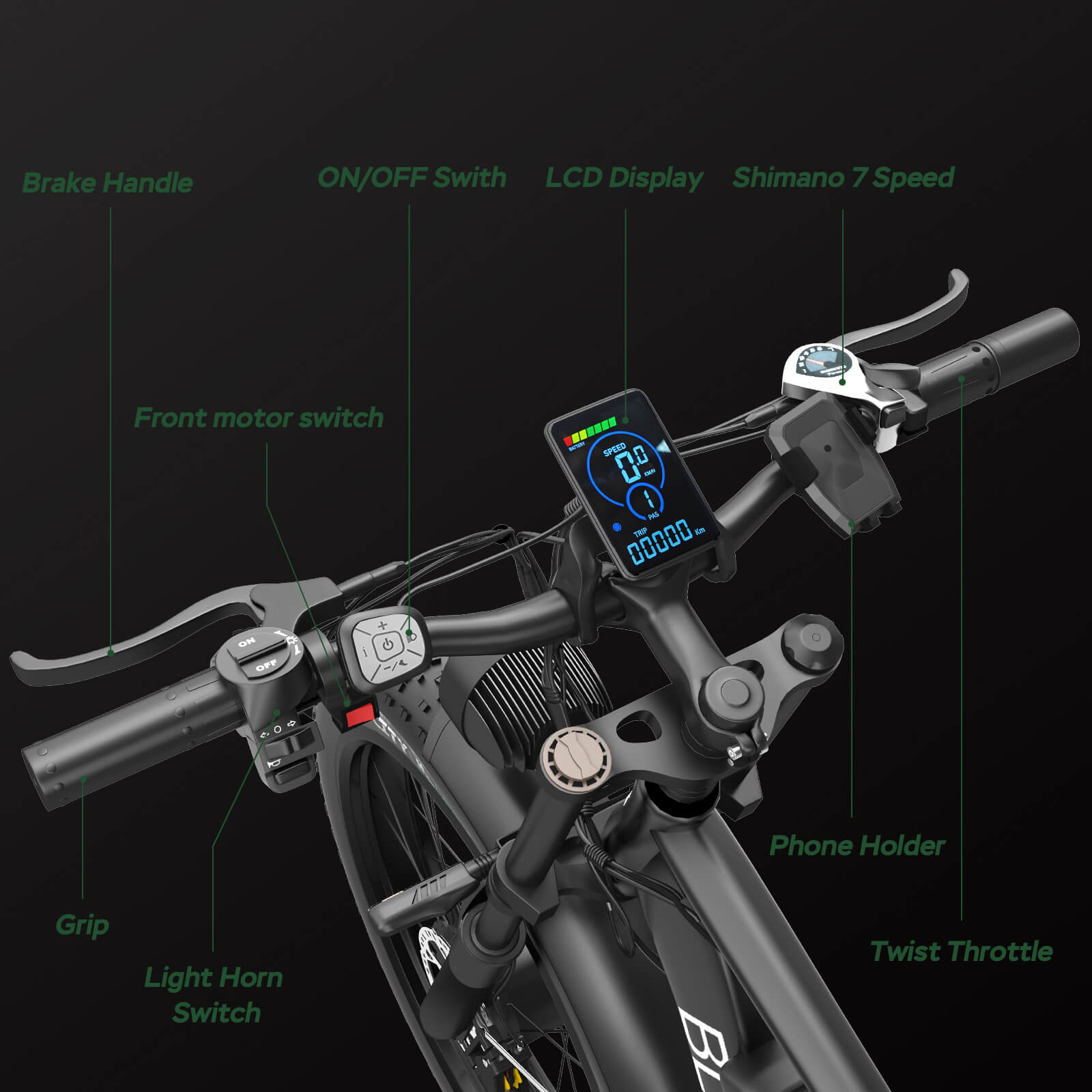

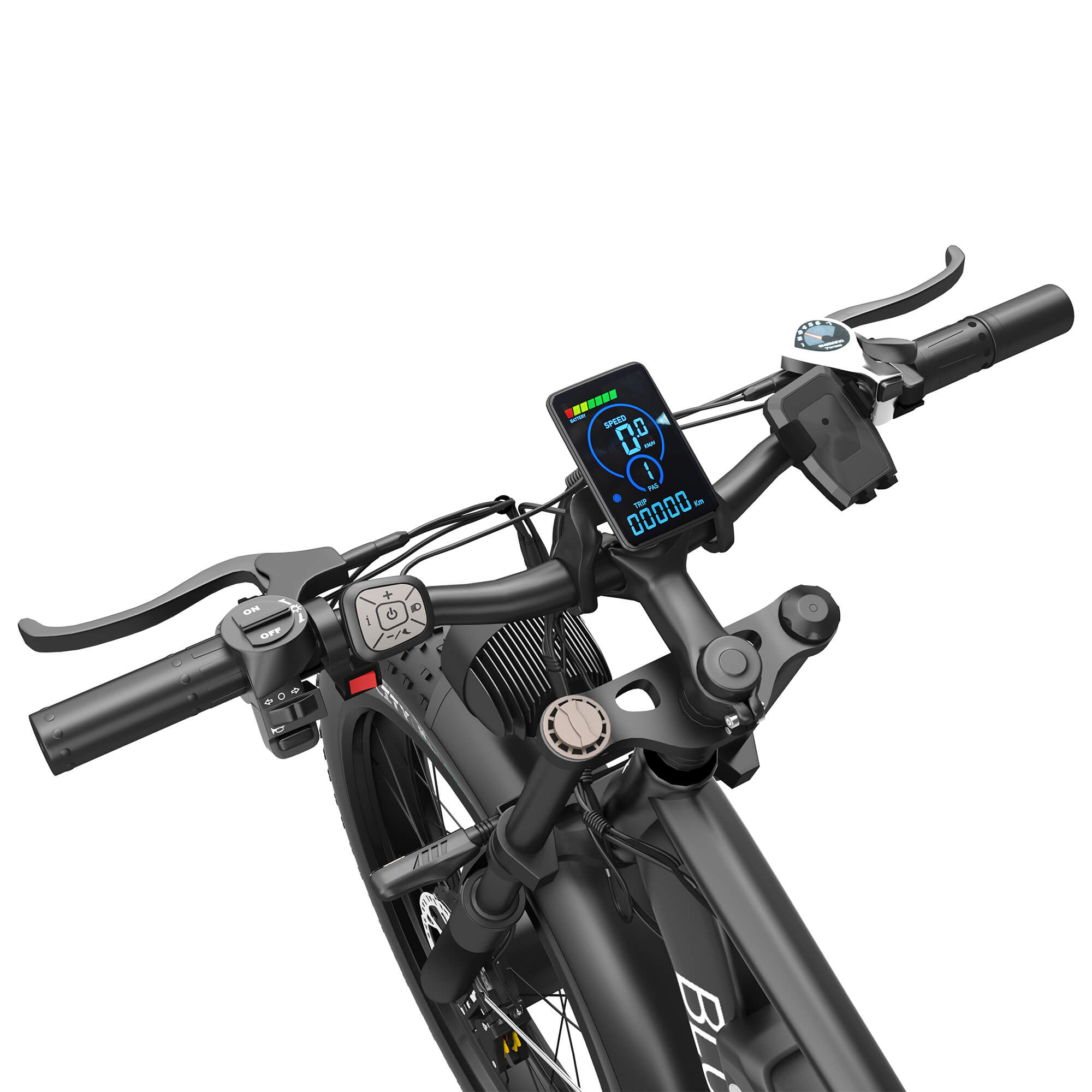

Crafted from high-quality aluminum 6061 alloys, the bike's frame is sturdy and long-lasting. The integrated headlight and intelligent LCD display enhance the riding experience.

V1 Assembly Guide

V1 arrived 90% assembled ,the rest is easy with this video.

Specification

Weight & Size Plus

Weight

  • Net Weight:34kg (74lbs)  ( including battery)
  • Gross Weight:43.8kg (96.56lb)
  • Battery Weight:4kg (8.82lb)
  • Weight limit:150 kg (330 lb) Payload Capacity

Size

  • Product Size:1930x730x1110mm
  • Packing Size:1570x330x900mm
General Plus
  • Classes:Class 4(Ebikes can go above 28mph with pedal assistance)
  • Max Speed: 35MPH
  • Range:up to 80 Miles by Pedal assist,40+ Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
  • Pedal Assist:5 Levels

E-system

  • Battery:Removable Internal Lithium-ion Battery, 48V 22.4Ah, 720Wh
  • Charger:48V 3 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
  • Motor:Dual Geared Hub Motor, Rated 1000wx2,Max Torque 80NMx2
  • Controller: 48V 25A x2
  • Display: Multifunctional LCD Smart Display
  • Pedal Assist: Cadence Sensor
  • Throttle: Twist Throttle

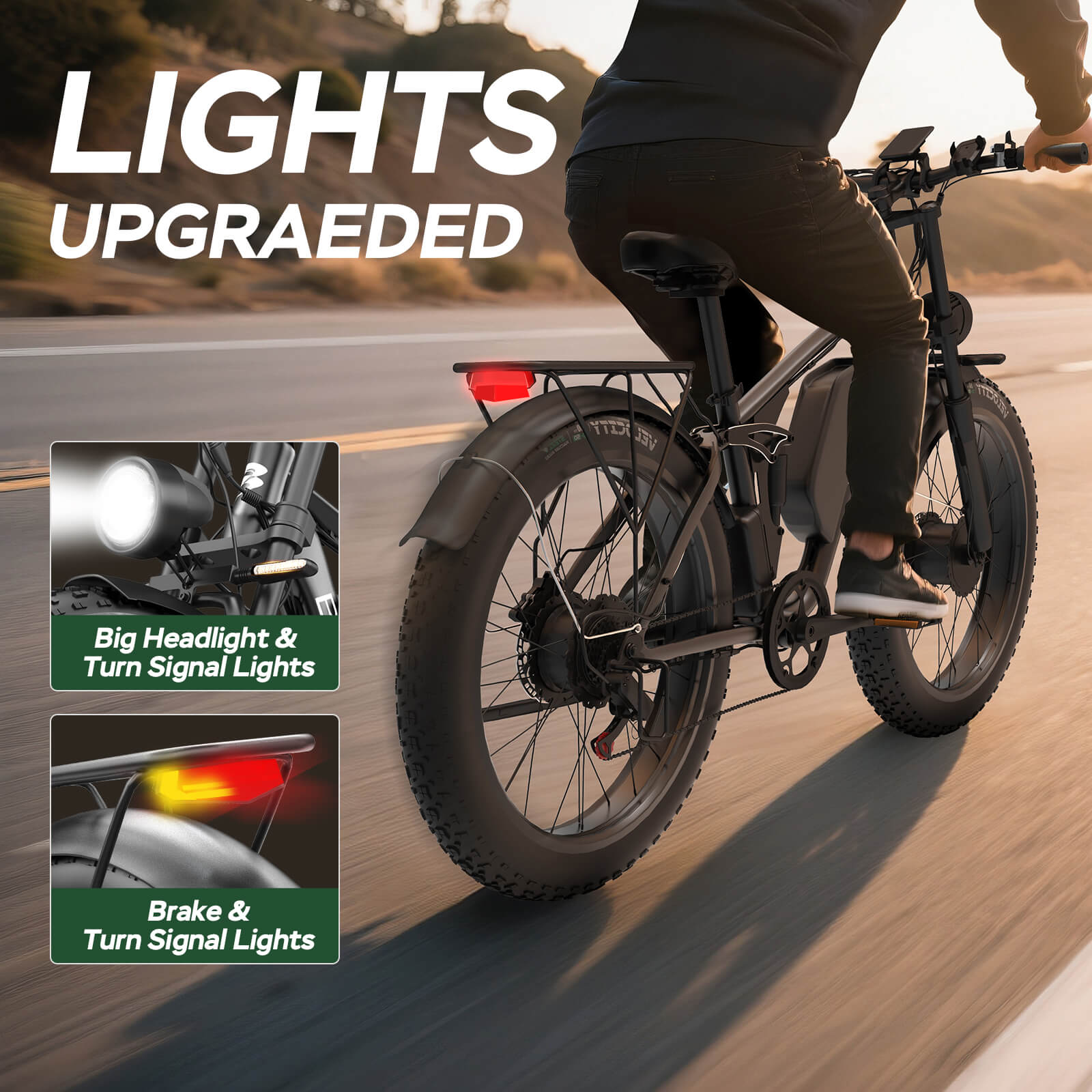

  • Front Light:48V 10W LED Light, 30 LUX
Component Plus

Drivetrain

  • Shifter:Shimano 7-Speed RevoShift
  • Rear Derailleur:Shimano ARDTY500D 7-Speed, Long Cage
  • Crank & Chainring: 48T, 170mm Alloy Crank
  • Freewheel:Shimano 14-28T, 7-Speed freewheel
  • Pedal: Alloy Platform Pedals
  • Chain:KMC 124 Link, 7-Speed

Components

  • Saddle: Comfortable Wide Saddle
  • Seatpost:Forged Alloy, Ø30.4*350mm
  • Seat Clamp:Ø35mm Quick Release
  • Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
  • Handlebar:Aluminum Ø31.8mm, Width 740mm
  • Headset:Sealed Bearing Headset
  • Grips:Nylon Lock-on, Ergonomic Comfort
  • Brake:Front & Rear Hydralic Disc Brakes, with160mm discs, with power-cut-off function
  • Brake rotor: 160mm, 1.9mm thick
  • Kickstand:Side Kickstand, Alloy, Rear Mount
  • Fenders:Plastic 26"x110mm

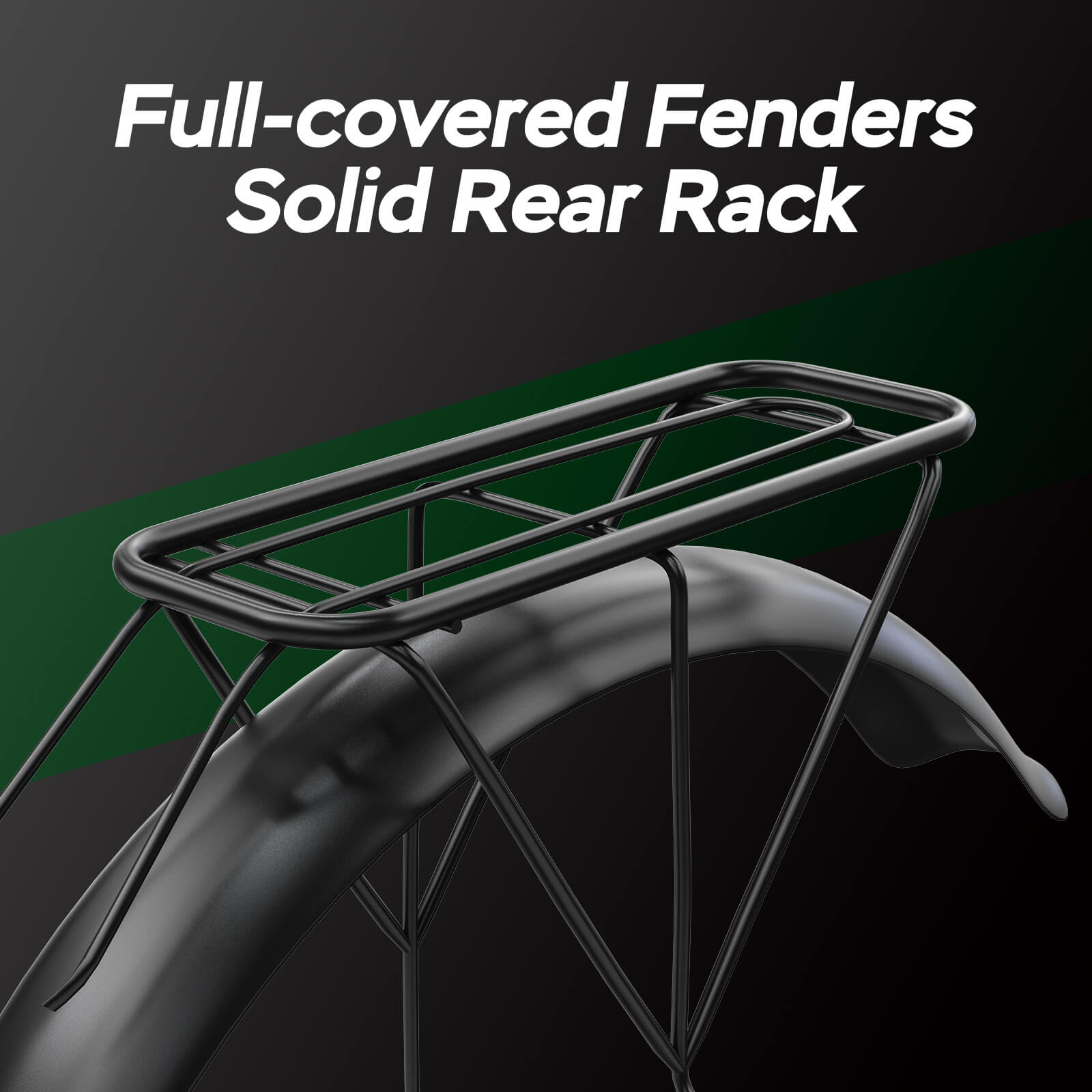

  • Rear Rack:Stainless Steel Rear Rack

Frameset

  • Frame: 6061 Aluminium, Removable Battery, Internal Routing
  • Fork:Hydraulic Suspension Fork with 60mm travel, with lockout

Wheels

  • Rim Material:Aluminum
  • Rim Size:26" 36H Front & Rear
  • Front Wheel Spokes:13G x 244/246mm, Black Stainless
  • Rear Wheel Spokes:12G x 217/219mm, Black Stainless
  • Tubes:Butyl Rubber, Schrader Valve
  • Hubs:Disc Nutted Front /Rear Axles
  • Tire:  Fat Tires
  • Tire Size: 26" x 4.0"
Inside the Box Plus

Ebike x1

Battery x1

Charger x1

peddle x2

Tool Set x1

Manual X1

Bell & Phone Holder x1
